Recurring Payment

Create and manage subscriptions and recurring payment

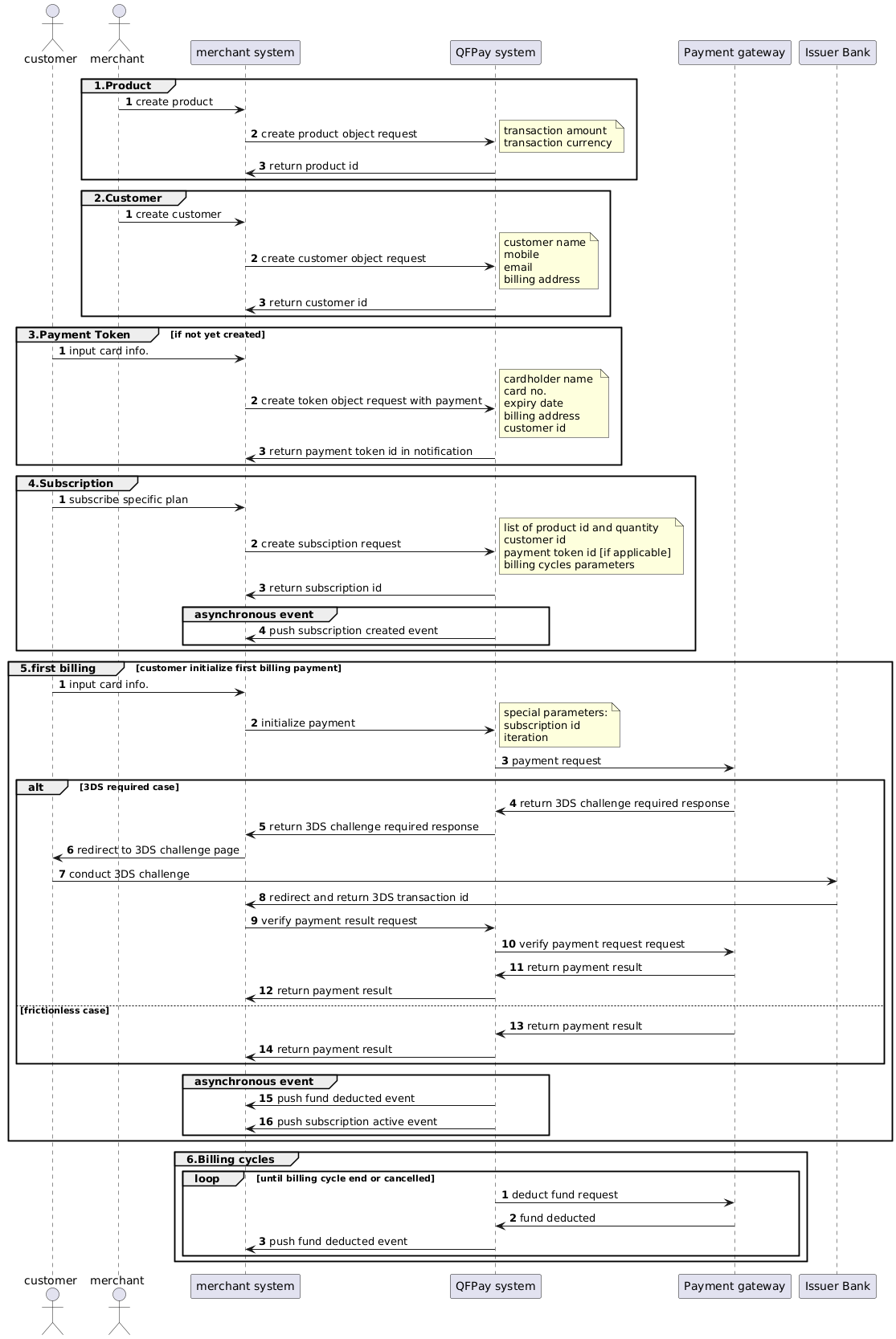

How subscription works

API Environment

Environment Name	URL
Sandbox	https://openapi-int.qfapi.com

API Resources

For build and manage subscriptions, the following API resources are required:

API Resources
Customer
Payment Token
Product
Subscription

Create subscription steps

info

Current flow of subscription creation

1. Config your notification address, you will receive notification to get token_id and track the state change of subscription.
2. Create customer object and get customer_id
3. Using customer_id and card information to create token intent and get token_id
4. Create product object and get product_id, your subscription transaction amount for each billing cycle and the interval between two billing cycles will be defined in product object.
5. Create subscription object using customer_id, product_id and token_id, your subscription start time and total billing cycles will be defined in subscription object.

Subscription state

state diagram All subscription state will be pushed to merchant's backend service once triggered

Common API response parameter

Attribute	Type	Description
respcd	String	Return code, 0000 = API call succeeded
resperr	String	result description
respmsg	String	information description
data	Object	result, JSON object or list of JSON object

Customer

Customer is an API resource for merchant to store customer's information. This object can be used in PaymentToken, Subscription APIs

Create customer object

Endpoint : /customer/v1/create

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
name	String	No	customer name
phone	String	No	customer contact no.
email	String	No	customer email address
billing_address	String	No	customer billing address, stringify JSON object

Response parameters in data field

Attribute	Type	Description
customer_id	String	unqiue customer ID in QF system
name	String	customer name
phone	String	customer contact no.
email	String	customer email address
billing_address	JSON	customer billing address

Update customer object

Endpoint : /customer/v1/update

Method : POST

Request parameters:

Attribute	Type	Mandatory	Description
customer_id	String	Yes	unqiue customer ID in QF system
name	String	No	customer name
phone	String	No	customer contact no.
email	String	No	customer email address
billing_address	JSON	No	customer billing address

Response parameters in data field:

Attribute	Type	Description
customer_id	String	unqiue customer ID in QF system
name	String	customer name
phone	String	customer contact no.
email	String	customer email address
billing_address	JSON	customer billing address

Inquiry customer object

Endpoint : /customer/v1/query

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
customer_id	String	No	unqiue customer Id in QF system
name	String	No	customer name
phone	String	No	customer contact no.
email	String	No	customer email address
page	Int	No	default value = 1
page_size	Int	No	default value = 10, the max value is 100

Response parameters in data field

Array of customer objects contianing the following attributes

Attribute	Type	Description
customer_id	String	unqiue customer ID in QF system
name	String	customer name
phone	String	customer contact no.
email	String	customer email address

Delete customer object

permanently delete customer object, cannot be undo. Any subscription plan associated with the deleted customer will be cancelled.

Endpoint : /customer/v1/delete

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
customer_id	String	Yes	unique customer identifier in QF system

Product

Products are the model for goods or services that merchants will provide to the customers. It defines transaction amount, transaction currency and billing cycles(if applicable). This object will be used in subscription API.

Create product object

create a new product

Endpoint : /product/v1/create

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
name	String	Yes	product name that displays to the customer
type	String	No	default value=onetime, possible values: onetime, recurring
description	String	No	product descritpion
txamt	Int	Yes	transaction amount, e.g. $1=100. Suggest value > 200 to avoid risk control
txcurrcd	String	Yes	transaction currency, e.g. HKD
interval	String	No	possible values: monthly, yearly, mandatory for recurring product
interval_count	Int	No	interval between 2 charges, maximum 1 year allowed, mandatory for recurring product
usage_type	String	No	default value=licensed, possible values: licensed

Response parameters in data field

Attribute	Type	Description
product_id	String	unique identifer generated in QF system
name	String	product name that displays to the customer
type	String	default value=onetime, possible values: onetime, recurring
description	String	product descritpion
txamt	Int	transaction amount, e.g. $1=100.
txcurrcd	String	transaction currency, e.g. HKD
interval	String	possible values: monthly, yearly
interval_count	Int	interval between 2 charges
usage_type	String	default value=licensed, possible values: licensed

Update product object

update current product information

Endpoint : /product/v1/update

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
product_id	String	Yes	unique identifier generated in QF system
name	String	No	product name that displays to the customer
description	String	No	product descritpion

Response parameters in data field

Attribute	Type	Description
product_id	String	unique product identifer generated in QF system
name	String	product name that displays to the customer
type	String	default value=onetime, possible values: onetime, recurring
description	String	product descritpion
txamt	Int	transaction amount, e.g. $1=100.
txcurrcd	String	transaction currency, e.g. HKD
interval	String	possible values: monthly, yearly
interval_count	Int	interval between 2 charges
usage_type	String	default value=licensed, possible values: licensed

Inquiry product object

Endpoint : /product/v1/create

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
product_id	String	No	unique product identifier generated in QF system
name	String	No	product name that displays to the customer
description	String	No	product descritpion
txcurrcd	String	No	transaction currency
interval	String	No	possible values: monthly,yearly
page	Int	No	page no., default value=1
page_size	Int	No	page size, default value=10,max value=100

Response parameters in data field

Array of product objects containing the following attributes:

Attribute	Type	Description
product_id	String	unique identifer generated in QF system
name	String	product name that displays to the customer
type	String	possible values: onetime, recurring
description	String	product descritpion
txamt	Int	transaction amount, e.g. $1=100.
txcurrcd	String	transaction currency, e.g. HKD
interval	String	possible values: monthly, yearly
interval_count	Int	interval between 2 charges
usage_type	String	possible values: licensed

Delete product object

note

only can delete product that is not assoicated with any subscription object

Endpoint : /product/v1/delete

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
product_id	String	No	unique product identifier generated in QF system

Subscription

QFPay automatically charges the customers on every billing cycle based on the product with the provided Payment Token until the subscription is finished or cancelled. Before create subscription, payment token, customer and product must be created.

Create subscription object

Endpoint : /subscription/v1/create

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
customer_id	String	Yes	unique customer identifier in QF system
token_id	String	Yes	unique payment token identifier in QF system
products	Object	Yes	list of unique product identifier in QF system and quantity
total_billing_cycles	Int	No	the total billing cycles of the subscirption, infinity if null value
start_time	String	No	the time subscription will start to work, the first payment will be

parameters in products:

Attribute	Type	Mandatory	Description
product_id	String	Yes	unique production identifier in QF system
quantity	Int	No	default value=1

example request format:

{
  "products": [
      {
          "product_id": "prod_54c3772d******9a54b236e09ec74f",
          "quantity": 1
      }
  ],
  "customer_id": "cust_aaf6aae94******982c54c9cae5ba32",
  "token_id": "tk_a99892fd*********d3417d168a18bb",
  "total_billing_cycles": 2,
  "start_time": "2020-05-14 12:32:56"
}

Response parameters in data field

Attribute	Type	Description
customer_id	String	unique customer identifier in QF system
token_id	String	unique payment token identifier in QF system
products	Object	list of unique product identifier in QF system and quantity
total_billing_cycles	Int	the total billing cycles of the subscirption, infinity cycles if null value
start_time	String	the time subscription will start to work

example response format:

{
    "resperr": "success",
    "respcd": "0000",
    "respmsg": "success",
    "data": {
        "state": "ACTIVE",
        "subscription_id": "sub_ce65d6feb8******d1b2e5fc90b1ef"
    }
}

Update subscription object

update current subscription

Endpoint : /subscription/v1/update

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
subscription_id	String	Yes	unique subscription identifier in QF system
total_billing_cycles	Int	No	the total billing cycles of the subscirption, infinity if null value
start_time	String	No	the time that subscription will start to work, it will be the first subscription payment time
token_id	String	No	unique payment token identifier in QF system
products	Object	No	list of unique product identifier in QF system and quantity

Response parameters in data field

Attribute	Type	Description
subscription_id	String	unique subscription identifier in QF system
customer_id	String	unique customer identifier in QF system
token_id	String	unique payment token identifier in QF system
products	Object	list of unique product identifier in QF system and quantity
total_billing_cycles	Int	the total billing cycles of the subscirption, infinity cycles if null value
start_time	String	the time that subscription will start to work, it will be the first subscription payment time
state	String	subscription state

Inquiry subscription object

Endpoint : /subscription/v1/query

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
page	Int	No	page no.,default value=1
page_size	Int	No	page size, default value=10, max value=100
subscritpion_id	String	No	unique subscription identifier in QF system
customer_id	String	No	unique customer identifier in QF system
token_id	String	No	unique payment otken identifier in QF system
state	String	No	subscription state, e.g. incompelete, active,...

Response parameters in data field

Array of subscription object containing the following attributes:

Attribute	Type	Description
subscription_id	String	unique subscription identifier in QF system
customer_id	String	unique customer identifier in QF system
token_id	String	unique payment token identifier in QF system
products	Object	list of unique product identifier in QF system and quantity
total_billing_cycles	Int	the total billing cycles of the subscirption, infinity cycles if null value
state	String	subscription state
next_billing_time	String	next fund deduct time
last_billing_time	String	previous fund deduct time
completed_billing_iteration	Int	how many billing cycles completed
start_time	String	the time that subscription will start to work, it will be the first subscription payment time

Cancel subscription object

cancel customer's subscription immediately

Endpoint : /subscription/v1/cancel

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
subscription_id	String	Yes	unique ID of subscription object

Query subscription orders

query target subscription's orders

Endpoint : /subscription/billing_order/v1/list

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
subscription_id	String	Yes	unique ID of subscription object
page	Int	No	page no.,default value=1
page_size	Int	No	page size, default value=10, max value=100

Response parameters in data field

Array of subscription order object containing the following attributes:

Attribute	Type	Description
subscription_order_id	String	subscription order identifier, format: sub_ord_ + id value of subscription_id + 4 digit order sequence number (iteration of this subscription) e.g. sub_ord_a360f06exxxxxxx4c3a_0001 stands for the first payment order for subscription sub_a360f06exxxxxxx4c3a
subscription_id	String	unique subscription identifier in QF system, format: sub_xxxxxxxx e.g. sub_a360f06exxxxxxx4c3a
trigger_by	String	who triggered this order payment, QF system is auto, Manual charge is manual
sequence_no	Int	the iteration of this order in the subscription plan, e.g. 2

Manaul charge a subscription transaction

Use API to charge a subscription immediately for a failed order.

Endpoint : /subscription/v1/charge

Method : POST

Request parameters

Attribute	Type	Mandatory	Description
subscription_id	String	Yes	unique ID of subscription object
subscription_order_id	String	No	unique ID of subscription order object

This API only applied for a subscription that having a failed order and in the state UNPAID, INCOMPLETE, or PAST_DUE. For the case that the payment is successed, if manual charge date is before scheduled next billing date, the subscription plan will continue to work with state ACTIVE, if the manual charge date is after next billing date, the subscription plan will be cancelled. If the payment is failed, the subscription plan will keep the original state.

Recurring payment actions

Ansynchronous notification

Notifications are available for both payment token and subscription events and states change

Upon successful payment token creation or subscription activation, QFPay API will send an asynchronous notification message to the URL that defined by the merchant

note

To configure notification address, please send the address as well as merchant and store information via email to technical.support@qfpay.com

Format: JSON

Payment Token

Attribute	Descritpion
userid	QFPay Store ID
notify_type	notification type, payment_token
event	token event when created, possible value: NEW, MATCH(existing token for this card), CONFLICT(card information is different from existing token for this card)
tokenid	payment token id
token_expiry_date	token expiry date
cardcd	card no.
card_scheme	card scheme, e.g. VISA
respcd	response code, e.g. 0000 (success case)
respmsg	response message, e.g. success
sysdtm	event trigger system time
customer_id	customer id if available
token_reason	tokenization reason
token_reference	tokenization reference in system

example:

{
    "respmsg": "",
    "card_scheme": "ECMC_DEBIT",
    "cardcd": "5200****1096",
    "tokenid": "tk_6a699aae75094caeb066f****988daa32de",
    "respcd": "0000",
    "token_expiry_date": "2024-04-30 00:00:00",
    "sysdtm": "2024-04-29 15:37:17",
    "notify_type": "payment_token",
    "event": "CONFLICT"
}

Subscription state change

Available when a subscription state is changed

Attribute	Descritpion
notify_type	notification type，subscription
subscription_id	unique subscription identifier, format: sub_xxxxxxxx
state	subscription state, e.g. COMPLETED, ACTIVE, for the full list of states please reference State
sysdtm	system time of state change

example:

{
  "state": "COMPLETED",
  "sysdtm": "2024-04-24 15:19:39",
  "notify_type": "subscription",
  "subscription_id": "sub_e51bb914919*****f6b0fe36d"
}

Subscription payment result

Available when a subscription order payment result is received

Attribute	Descritpion
notify_type	notification type, subscription_payment
subscription_id	unique subscription identifier, format: sub_xxxxxxxx e.g. sub_a360f06exxxxxxx4c3a
subscription_order_id	subscription order identifier, format: sub_ord_ + id value of subscription_id + 4 digit order sequence number (iteration of this subscription) e.g. sub_ord_a360f06exxxxxxx4c3a_0001
respcd	response code, e.g. 0000 (success case)
respmsg	response message, e.g. success
syssn	transcation number
txdtm	transcation time
txamt	transcation amount.
txcurrcd	transcation currency
customer_id	unique customer identifier, format:cust_xxxxxx
product_id	unique product identifier for all products, separated by comma, e.g.: prod_xxxxxa23f30,prod_xxxxxbe342ac
cardcd	card no.
card_scheme	only available for 0000, card scheme, e.g. VISA
current_iteration	current iteration of this subscription, e.g. 1

example:

{
  "txcurrcd": "HKD",
  "reason": "AUTHORISED",
  "cardcd": "",
  "subscription_order_id": "sub_ord_a360f06eb*****ad6aff24c3a",
  "product_id": "prod_8c838c17ddb043b9***11f1a85c30",
  "txdtm": "2024-04-24 15:19:37",
  "txamt": "300",
  "card_scheme": "VISA_DEBIT-SSL",
  "syssn": "20240424180500020000015704",
  "respcd": "0000",
  "subscription_id": "sub_e51bb914919***31d800f6b0fe36d",
  "customer_id": "cust_a9c0bcf2717f4***786a10e5f8f2",
  "notify_type": "subscription_payment",
  "current_iteration": "1",
}
