Element SDK

create your own checkout flows by using QFPay prebuilt UI components

import JS library

// sanbox environment
<script src="https://cdn-int.qfapi.com/qfpay_element/qfpay.js"></script>
// live test environment
<script src="https://test-cdn-hk.qfapi.com/qfpay_element/qfpay.js"></script>
// production environment
<script src="https://cdn-hk.qfapi.com/qfpay_element/qfpay.js"></script>

Code examples

1.payment mode

1.1 credit card form (visa/mastercard)

// initialize qfpay object
const qfpay = QFpay.config()

// initialize payment object
const payment = qfpay.payment()

// set payment related parameters
payment.pay({
  goods_name: "goods",
  paysource: "payment_element"
}, "e487a02e3e1143e482db765ccec63d58")

// initialize element object and generate card form
const elements = qfpay.element()
elements.createEnhance({
  selector: "#container"
})

// trigger card form submission and receive payment response
const response = qfpay.confirmPayment({
  return_url: 'https://xxx.xxx.com'
})

1.2 complete payment function including credit card form, Alipay HK, Alipay CN, WechatPay, QuickPass, FPS, Payme etc

// initialize qfpay object
const qfpay = QFpay.config()

// initialize payment object
const payment = qfpay.payment()

// validate payment intent valye
qfpay.retrievePaymentIntent()

// set payment parameters
payment.walletPay(
{
  lang:  'zh-cn',
  goods_info:  'goods_info',
  goods_name:  "goods_name",
  paysource:  "payment_element_checkout",
  out_trade_no: intentParams.out_trade_no,
  txamt:  intentParams.txamt,
  txcurrcd:  intentParams.txcurrcd,
  support_pay_type: ['Alipay', 'WeChat', 'UnionPay', 'AlipayHK',
  'FPS', 'VisaMasterCardPayment', 'ApplePay', 'VisaMasterCardPreAuth']
},intentParams.payment_intent);
// initalize element object and create wallet list
const  appearance = {
variables: {
	colourComponentText:  'black',
	colorQRCodeTopPromptContent:  '#000000',
	colorQRCodeBottomPromptContent:  '#000000',
	fontWeightQRCodeTopPrompt:  '900',
	fontWeightQRCodeBottomPrompt:  '300'
},
billingAddressDisplay: {
	city:  true,
	address1:  true,
	address2:  true,
}
}
const elements = qfpay.element(appearance)
elements.createWallet({
	selector:  "#container"
})

//trigger submission and retrieve payment response
const response = qfpay.confirmWalletPayment({
return_url:  'https://xxx.xxx.com'
})

Instruction Manual

Prerequisites:
import SDK library (qfpay.js) according to your environment and purpose

global object QFPay and related APIs

1. QFpay.config(params)

/**
 * parameters: optional, Object, default valie: {region: 'hk', env: 'prod'},
 *      region possible values：
 *        'hk' 		- live/live test
 *        'qa' 		- sandbox
 *
 *      env possible values:
 *        'prod' 	- live environment
 *        'test' 	- live test environment
 *        'qa' 		- sandbox environment
 * return: qfpay object
 * purpose: generate qfpay global object
 */
const qfpay = QFpay.config()

2. qfpay.retrievePaymentIntent()

/**
 * parameters: N/A
 * return: response code, payment intent is available for use if '0000' value, otherwise not available
 * purpose: validate payment intent is correct and available for use
 */
const intentResponse = qfpay.retrievePaymentIntent()

3. qfpay.element(appearance)

/**
 * parameters: optional, Object, {theme: string, variables: Object, billingAddressDisplay: Object}
 *      theme: support only value 'night', night mode,
 *      if values are set in variables, the style will apply those values only
 *      variables: {
 *        fontFamily: 'cursive',         // Font Family
 *        fontWeight: '400',             // Font Weight
 *        colorText: 'black',            // Text Color
 *        sizeFontSubTitle: 'inherit',   // Font Size
 *        colourBackground: '#fff',      // Background Color
 *        colourPrimary: '#ced4da',      // Input Box Color
 *        colourComponentText: 'purple', // Input Box Text Color
 *        sizeComponentText: '15px',     // Input Box Font Size
 *        colourErrorMessage: '#da5d4a', // Error Message Color
 *        sizeErrorMessage: 'inherit'    // Error Message Font Size
 *        colorPaymentButton: '#000000' //payment button color
 *        colorPaymentButtonText: '#FFFFFF'  //payment button text color
 *        colorQRCodeTopPromptContent: '#000000'  // QRCode Top memo text color
 *        colorQRCodeBottomPromptContent: '#000000'  //QRCode bottom memo text color
 *       fontWeightQRCodeTopPrompt: '900'  //QRCode Top memo font weight
 *       fontWeightQRCodeBottomPrompt: '300'  //QRCode bottom memo font weight
 *      }
 *      billingAddressDisplay: {
 *        city: true      // flag for controlling displayment of city &  postal code in billing address
 *        address1: true  // flag for controlling displayment of address1 in billing address
 *        address2: true  // flag for controlling displayment of address2 in billing address
 *      }
 * return：element object
 * purpose: generate element object
 */
const elements = qfpay.element()

4. qfpay.payment()

/**
 * parameters: N/A
 * return： payment object
 * purpose: generate payment object
 */
const qfpay = QFpay.config()
const payment = qfpay.payment()

5. qfpay.confirmPayment()

/**
 * parameters：optional, Object type, {return_url: 'https://xxx.xxx.xxx'}, the page will be redirect to specific page mentioned in return_url parameter after payment completed. Otherwise, will stay in the same page
 * return：
 *   1. card payment
 *      return value：code, description, out_trade_no, syssn
 *      '0000' response code if success payment,
 *      otherwise failure payment, error message can reference to description
 *
 *   2. ApplePay
 *      return value：code, description;
 *      code value:'1111', Applepay payment cancalled
 *      code value:'0000', payment success, can refer to description value for payment status description
 * purpose：return payment result
 */
const paymentResponse = qfpay.confirmPayment({
  return_url: 'https://www.baidu.com'
})

6. qfpay.confirmWalletPayment()

/**
 * parameters：optional, Object type, {return_url: 'https://xxx.xxx.xxx'}, the page will be redirect to specific page mentioned in return_url parameter after payment completed. Otherwise, will stay in the same page
 * return：
 *   1. card payment
 *      return value：code, description, out_trade_no, syssn
 *      '0000' response code if success payment,
 *      otherwise failure payment, error message can reference to description
 * purpose：return payment result
 */
const paymentResponse = qfpay.confirmPayment({
  return_url: 'https://www.baidu.com'
})

Payment object and APIs

const qfpay = QFpay.config()
const payment = qfpay.payment()

1. payment.pay(params1, params2)

/**
 * parameters：
 *     	   params1，mandatory，Object,
 *              {goods_name: '', paysource: 'payment_element'}
 *               goods_name: goods name,optional;
 *               paysource: fixed, value:payment_element, mandatory
 *         params2, mandatory, string, payment intent value from API
 * extra special parameters in 'params1'：
 *         customer_id: params1 optional parameter，QFPay generated customer Id
 *         token_expiry: params1 optional parameter, Token expiry date
 *         token_reason: params1 optional parameter, Reason for token creation
 *         token_reference: params1 optional parameter, Reference for token
 *         no need pass above special parameters if use payment function only
 *         if would like to collect card information for tokenization purpose, then need pass above parameters
 * return: No
 * purpose：set payment parameters
 */
payment.pay({
  goods_name: 'goods',
  paysource: 'payment_element'
}, 'SDF8980SFFSDF890SDF')

2. payment.walletPay(params1, params2)

/**
 * parameters:
 *     params1, mandatory, Object, { lang: 'zh-cn', goods_name: '', paysource: 'payment_element', paysource: "payment_element_checkout", out_trade_no: intentParams.out_trade_no, txamt: intentParams.txamt, txcurrcd: intentParams.txcurrcd}
 *     lang: language, optional, zh-cn:simplify chinese, zh-hk traditional chinese, en: english
 *     goodsname: goods name, optional,
 *     paysource: fix value, payment_element_checkout,mandatory
 *     out_trade_no: merchant order id, mandatory
 *     txamt: transaction amount in cents, mandatory. Suggest value > 200 to avoid risk control
 *     txcurrcd: transaction currency, mandatory
 *     support_pay_type: customize display of activited payment methods, optional, show all activated methods if not pass this parameter, detail parameter values please refer to the folllwoing description
 *     params2, mandatory, string, payment intent value from
 * extra special parameters in 'params1':
 *         customer_id: params1 optional parameter，QFPay generated customer Id
 *         token_expiry: params1 optional parameter, Token expiry date
 *         token_reason: params1 optional parameter, Reason for token creation
 *         token_reference: params1 optional parameter, Reference for token
 *         no need pass above special parameters if use payment function only
 *         if would like to collect card information for tokenization purpose, then need pass above parameters
 * return: No
 * purpose：set payment parameters
 */
/**
 * params1 support_pay_type parameter value list
 * 'Alipay'                  // 'Alipay CN',
 * 'WeChat'                  // 'Wechat',
 * 'UnionPay'                // 'UnionPay and QuickPass',
 * 'AlipayHK'                //  'Alipay HK',
 * 'FPS'                     //  'FPS',
 * 'VisaMasterCardPayment'   //  'Visa/MasterCard'
 * 'PayMe'                   //  'PayMe'
 * 'ApplePay'                //   'ApplePay'
 * 'VisaMasterCardPreAuth'   //  'Visa/MasterCard Pre-Authorization'
 */
payment.walletPay({
	goods_info:  'goods_info',
	goods_name:  "goods_name",
	paysource:  "payment_element_checkout",
	out_trade_no:  intentParams.out_trade_no,
	txamt:  intentParams.txamt,
	txcurrcd:  intentParams.txcurrcd,
}, 'SDF8980SFFSDF890SDF')

3. payment.inquiry(params1, params2)

/**
 * parameters:
 *      params1, mandatory， Object, {syssn: string, out_trade_no: string, pay_type: string, respcd: stirng, start_time: string, end_time: string} | {}
 *               syssn: QF QF system serial no, use comma to separate mutliple values
 *               out_trade_no: merchant order ID, use comma to separate multiple values
 *               pay_type: payment type, use comma to separate multiple values
 *               respcd: response code, default all response code
 *               start_time: start time, format: 'YYYY-MM-DD HH:mm:ss', default current month start
 *               end_time: end time, format: 'YYYY-MM-DD HH:mm:ss', default current month end
 *      params2, mandatory, string, payment intent from API
 * return: inquiry result
 * purpose：inquiry payment result
 */
const inquiryResponse = payment.inquiry({}, 'SDF8980SFFSDF890SDF')

Element object and APIs

const qfpay = QFpay.config()
const elements = qfpay.element()

1. elements.create(params1, params2, params3) --- support Visa/Mastercard card payment only

/**
 * parameters：
 *      params1, mandatory, string, card form id
 *      params2, optional, boolean, default value is:true, card form will show email address input if true value
 *      params3, optional, string, default value:payment, generate card form
 * return: N/A
 * purpose: generate card form
 */
elements.create("#container")

2. elements.createEnhance(params) --- support Visa Mastercard card payment, ApplePay payment, token creation, token creation in payment mode

/**
 * parameters：params: Object, {selector: string, email: boolean, tab: boolean, element: string}
 *      selector: mandatory, string, element wallet id
 *      email: optional, boolean, default value:true, card form will show email address input if true
 *      tab: optional, boolean, default value:false,
 *           true:  element wallet switch way is tab
 *           false: wallet list switch way is vertical list
 *      element: optional, string, default value:payment,
 *           payment: normal payment mode
 *           token: token creation mode
 * return: N/A
 * purpose: generate element wallet
 * NOTICE：tab parameter only effecitve in payment mode
 */
elements.createEnhance({
  selector: '#container'
})

note

In QA environment, default expiry time is 7 days. In Production/Living Test environment, default expiry time is 2 years.

Retrieve selected wallet type

window.addEventListener('walletType', ({detail}) => {
  /**
   * detail: possible: ApplePay and Card
   * detail:ApplePay, selected payment method is applepay
   * detail:Card, selected payment method is card payment
   */
})

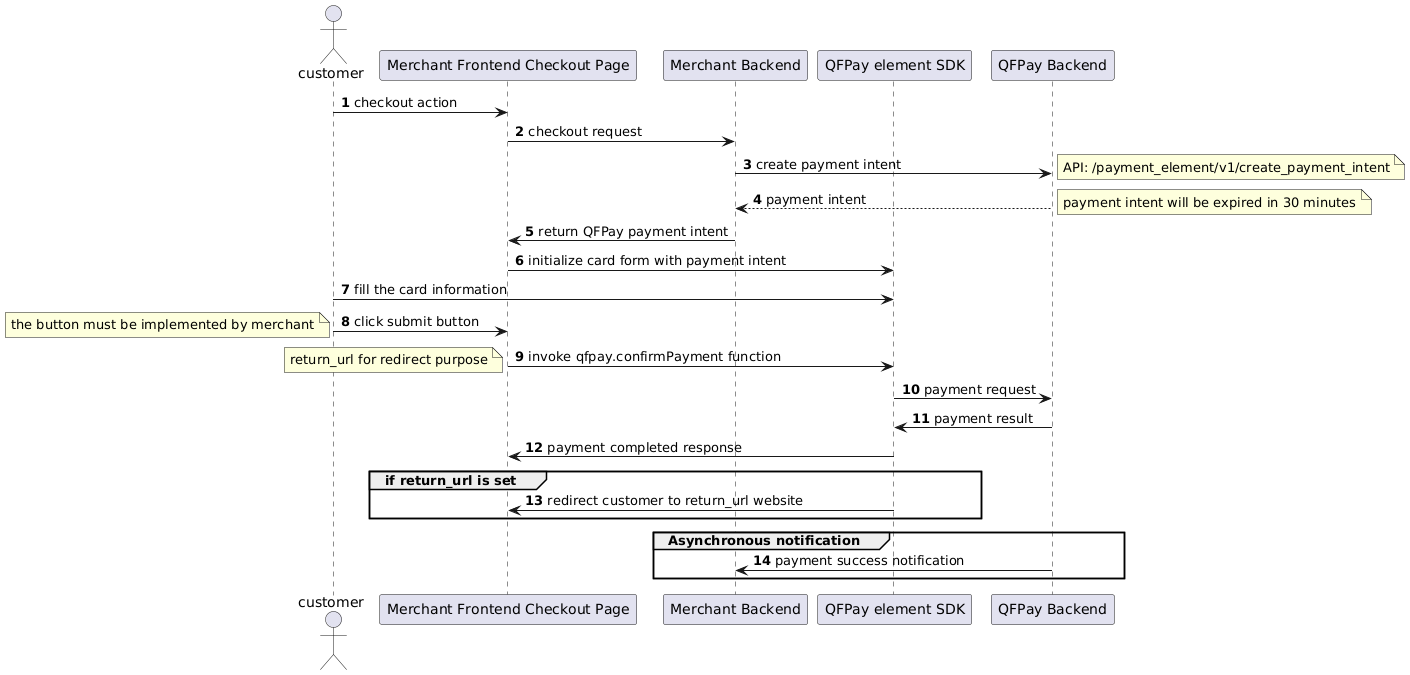

Create payment intent API

Endpoint : /payment_element/v1/create_payment_intent

Method : POST

Header

Header name	Mandatory	Description
X-QF-APPCODE	Yes	Merchant code
X-QF-SIGN	Yes	Merchant key

Request Parameters

Attribute	Mandatory	Description
txamt	Yes	Payment amount，unit in cents. Suggest value > 200 to avoid risk control
txcurrcd	No	Currency e.g. HKD/ CNY (ISO_4217)
pay_type	Yes	Payment type e.g. WP credit card: 802801
out_trade_no	Yes	out trade no of merchant
mchid	No	mchid, for channel use
return_url	No	payment success redirect url
failed_url	No	payment fail redirect url
notify_url	No	url for transaction notification

Response Parameters

{
    "respcd": "0000",
    "txamt": "123",
    "txcurrcd": "123",
    "sysdtm": "2022-11-14 16:15:16",
    "out_trade_no": "501871840",
    "payment_intent": "38aec7cef8564f309ea2265a454b8ca5",
    "intent_expiry": "2022-11-15 12:34:34"
}

---

Create token intent API

Endpoint : /payment_element/v1/create_token_intent

Method : POST

Header

Header name	Mandatory	Description
X-QF-APPCODE	Yes	Merchant code
X-QF-SIGN	Yes	Merchant key

Request Parameters

Attribute	Mandatory	Description
mchid	No	mchid, for channel use
customer_id	Yes	customer id
token_expiry	No	token expiry date
token_reason	No	token creation reason
token_reference	No	token reference
notify_url	No	url for transaction notification

Response Parameters

{
    "respcd": "0000",
    "sysdtm": "2022-11-14 16:15:16",
    "token_intent": "38aec7cef8564f309ea2265a454b8ca5",
    "intent_expiry": "2022-11-15 12:34:34"
}
