FPS 應用程式互調用支付集成指南

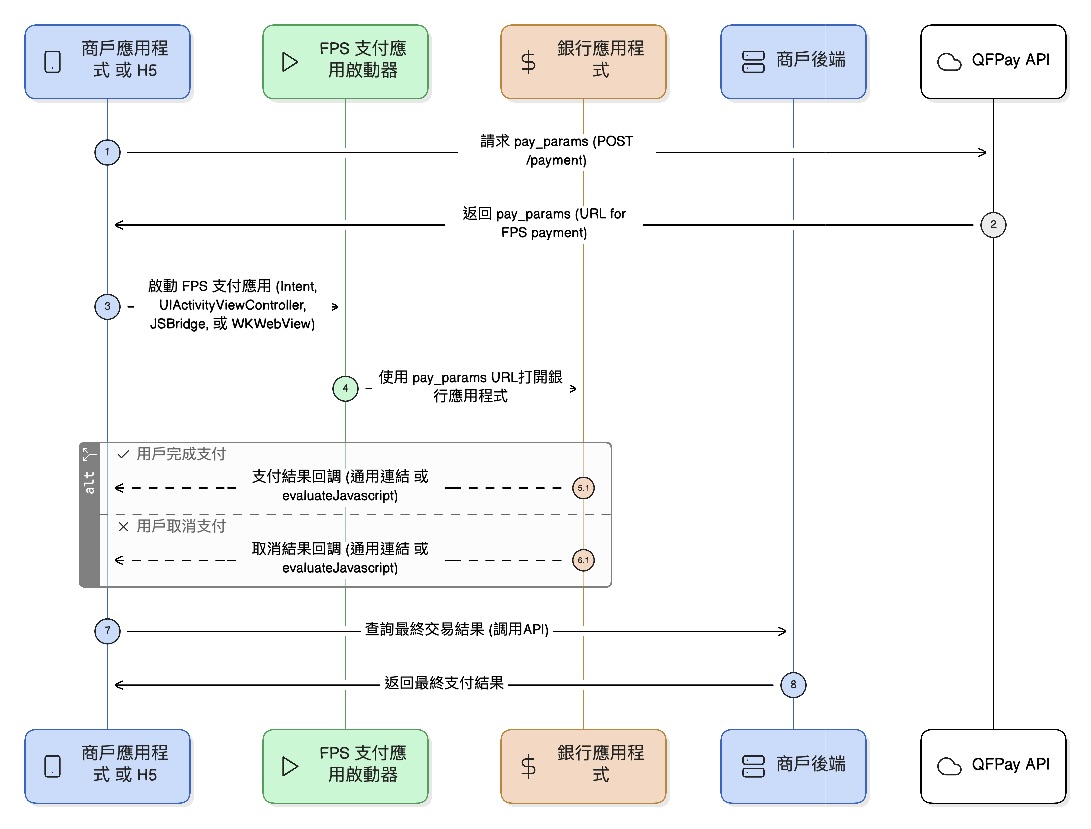

本頁說明商戶 App 或 H5 如何透過 QFPay API 和 Intent/Universal Link 等方式喚起銀行支付應用，並完成 FPS App-to-App 的支付流程。支援 Android 與 iOS 系統，並提供完整代碼範例與 Demo 下載連結。

---

1. 取得支付參數

API 端口：/trade/v1/payment
請求方法：POST
支付編碼：800210

請求參數

參數名稱	是否必填	類型	描述
通用請求參數	是	依照平台設定	詳見 通用請求參數

僅適用於 HSBC FPS 商戶

如你的 FPS 為 HSBC 直連模式，商戶必須申請一張獨立的 SSL 憑證（證書），且該憑證之網域名稱必須與商戶主體一致。

此設定為以下用途所必須：

• iOS Universal Link 回調驗證
• Android HTTPS 回調／重導驗證
• HSBC 生產環境上線及安全審核

📄 詳細申請流程、CSR 產生方式及所需文件，請參閱： FPS e-Cert 申請說明文件

回應參數

參數名稱	類型	描述
通用回應參數	依照平台設定	詳見 通用回應參數
pay_params	String(128)	用於拉起銀行 FPS 支付應用的 URL，例如：https://fps.xxx/xxx

---

2. Android FPS 支付流程

2.1 原生 App-to-App 流程

1. 商戶首先通過網站 API 獲取 pay_params URL
2. 通過 Android Intent 方式啟動 FPS 支付 App
3. 加設 Action: hk.com.hkicl ，Key: url ，Value: 支付 URL
4. 使用 startActivityForResult 連動支付 App
5. 在 onActivityResult 中根據 requestCode 接收支付結果
6. 商戶 App 需根據自己的訂單狀態查詢系統確認結果

參考代碼: Android Java 啟動範例

///支付發起請求代碼
int payRequestCode = 100;

//支付鏈接參數
String payUrl = "https://fps.qfpay.global/trade/v1/urltranslate/PAYCORE_SHORT_URL_202511075370911194";

//封裝支付選擇應用（銀行 app） Intent
Intent intent = new Intent("hk.com.hkicl");

//Intent添加參數“url”，值為支付鏈接參數
intent.putExtra("url", payUrl);

//啟動app 選擇器，選擇支付銀行
startActivityForResult(intent, payRequestCode);


//獲取支付返回结果
    @Override
    public void onActivityResult(int requestCode, int resultCode, @Nullable Intent data, @NonNull ComponentCaller caller) {
        super.onActivityResult(requestCode, resultCode, data, caller);
        if (requestCode == payRequestCode) {
            //支付结果
            if (resultCode == RESULT_OK) { // 支付成功

            } else if (resultCode == RESULT_CANCELED) { // 支付失敗

            }
        }
    }

2.2 Android H5-to-App 支付流程

H5 頁面可透過 WebView 調用 FPS App 完成支付，需實作以下幾步：

1. WebView 設定

   • 啟用 JavaScript：webView.getSettings().setJavaScriptEnabled(true)
   • 綁定 JS 與 Android 溝通橋接：addJavascriptInterface(new JsBridge(), "AndroidBridge")

2. H5 觸發支付流程

   • 當用戶點擊付款，H5 使用 JS 方法調用 Android：
     AndroidBridge.handleMessage(JSON.stringify({ url: 'https://fps.qfapi.com/xxx' }))

3. 原生 App 處理 JS 傳入的支付參數

   • 接收後組裝 Intent 發送支付請求：

     Intent intent = new Intent("hk.com.hkicl");
     intent.putExtra("url", payUrl);
     startActivityForResult(intent, REQUEST_CODE);

4. 接收支付結果並回傳給 H5

   • 在 onActivityResult() 中將結果用 JS 傳回 WebView：

     String resultJson = "{code: '0000', msg: 'success'}";
     webView.evaluateJavascript("javascript:window.handleNativeCallback(" + resultJson + ")", null);

5. 商戶應以自身訂單查詢為準確認最終支付狀態。

參考代碼: Android WebView H5 啟動範例

public class Web2AppCallPayActivity extends Activity {

    /**
     * 商户 App 加載的 H5連結
     */
    private static final String WEB_PAY_LINK = "https://img-int.qfapi.com/upstatic/20251119/fpsH5CallApp/index.html";


    /**
     * 商户 App 内部 Web 組建
     */
    private WebView webView;

    /**
     * Web 端發起支付時出入的 callBackId
     */
    private String callBackId;

    /**
     * 支付發起請求代碼
     */
    int payRequestCode = 100;

    @Override
    public void onCreate(@Nullable Bundle savedInstanceState, @Nullable PersistableBundle persistentState) {
        super.onCreate(savedInstanceState, persistentState);
        setContentView(R.layout.more_view);

        webView = findViewById(R.id.web_pay);
        //使 Web 组件支持 Js 交互
        webView.getSettings().setJavaScriptEnabled(true);
        //Web 端需要指定交互的接收方法，已經交互操作 Name，
        webView.addJavascriptInterface(this, "AndroidInterface");
        //Web 加載 H5連結
        webView.loadUrl(WEB_PAY_LINK);
    }


    @Override
    public void onActivityResult(int requestCode, int resultCode, @Nullable Intent data, @NonNull ComponentCaller caller) {
        super.onActivityResult(requestCode, resultCode, data, caller);
        if (requestCode == payRequestCode) { // 此次返回结果为拉起支付的操作

            EvaluateBean evaluateBean = new EvaluateBean(); //支付结果需要封装為對象，转换为 json 字符串回傳至H5端
            evaluateBean.setCode(resultCode); //设置支付结果代码
            if (resultCode == RESULT_OK) { //支付成功
                evaluateBean.setRespmsg("Pay Success");
            } else if (resultCode == RESULT_CANCELED) {  //支付取消
                evaluateBean.setRespmsg("Pay Cancel");
            }
            String evaluateJson = new Gson().toJson(evaluateBean);//支付结果轉換为 json 字符串
            //將支付结果回傳给 H5端， 方法名固定为javascript:window.handleNativeCallback();
            //需要傳入兩個參數
            //一、H5端發起支付時傳入的 callbackId 參數
            //二、支付結果包括 code 和 文字描述，將兩個參數封装成 Bean，然後轉換為 Json字符串傳遞回 H5端
            webView.evaluateJavascript("javascript:window.handleNativeCallback('" + callBackId + ")" + ",(" + evaluateJson + "')", null);
        }
    }


    /**
     * H5端通过此方法来通知商户 App 操作， 方法名需要添加注解@JavascriptInterface
     * 方法名必須為handleMessage
     *
     * @param paramFromWebPay H5端將支付参数傳遞過來
     */
    @JavascriptInterface
    public void handleMessage(String paramFromWebPay) {
        if (TextUtils.isEmpty(paramFromWebPay)) return;
        WebParamsBean webParamsBean = new Gson().fromJson(paramFromWebPay, WebParamsBean.class);

        //Web 端發起支付時出入的 callBackId
        callBackId = webParamsBean.getCallbackId();

        //獲取H5端返回的支付所需要的参数 Url
        String paymentRequestURL = webParamsBean.getParams().getPaymentRequestURL();

        //商户 App 發起調用本地银行 App 操作
        launchBankPay(paymentRequestURL);
    }

    /**
     * 商户 App 發起調用本地银行 App 操作
     *
     * @param paymentRequestURL H5端將支付參數傳遞過來
     */
    private void launchBankPay(String paymentRequestURL) {
        Intent intent = new Intent("hk.com.hkicl");
        intent.putExtra("url", paymentRequestURL);
        startActivityForResult(intent, payRequestCode);
    }
}

---

3. iOS App-to-App 支付流程

3.1 原生 App 啟動 FPS 支付 App

1. 商戶首先調用支付參數接口，獲取支付參數 URL（例如：https://fps.qfpay.global/trade/v1/urltranslate/PAYCORE_SHORT_URL_202511075370911194）
2. 商戶 App 使用 iOS App Extension 框架 + UIActivityViewController 調起支持的支付 App（如銀行 App）
3. 消費者在支付 App 完成付款後，透過回調參數 callback（即商戶 App 的 Universal Link）跳轉回商戶 App
4. 商戶 App 必須根據自身的訂單查詢系統確認最終支付結果

集成步驟：

• 創建一個 NSExtensionItem
• 將 pay_params URL 和 callback 包裝進 NSItemProvider
• 設定 NSItemProvider 的 UTI 類型為 hk.com.hkicl
• 使用 UIActivityViewController 顯示選單，讓用戶選擇支付 App

🔗 Apple 官方文件： Universal Links 官方說明 Associated Domains 配置方式

Objective-C

#import "FPSAppCallAppTool.h"
#import <UIKit/UIKit.h>
#import "define.h"
@implementation FPSAppCallAppTool

+ (FPSAppCallAppTool *)shareInstance {
    static FPSAppCallAppTool *model = nil;
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        if (!model) {
            model = [[FPSAppCallAppTool alloc] init];

        }
    });
    return model;
}
- (void)fpsPaymentResult:(NSDictionary *) result {
    NSLog(@"%@", result);
    [[NSNotificationCenter defaultCenter] postNotificationName:kNotificationNameFPSPaymentH5CallAppResult object:result];
}
- (UIViewController *)getCurrentWindowRootVC {
    for (UIScene *scene in [UIApplication sharedApplication].connectedScenes) {
        if ([scene isKindOfClass:[UIWindowScene class]]) {
            UIWindowScene *windowScene = (UIWindowScene *)scene;
            for (UIWindow *window in windowScene.windows) {
                if (window.isKeyWindow) {
                    return window.rootViewController;
                }
            }
        }
    }
    return nil;
}
- (void)invokePaymentExtension:(NSString *)paymentRequestURL {
    // 1. 獲取支付参数（從商户服務器獲取如https://fps.qfpay.global/trade/v1/urltranslate/PAYCORE_SHORT_URL_202511075370911194）
    // Demo測試可在輸入框中输入響應的支付參數
    @try {
        if (!paymentRequestURL || paymentRequestURL.length <= 0) {
            [self showAlert];
            return;
        }
    } @catch (NSException *exception) {
        return;
    }
    // 商户的Universal Link（用於支付完成後回調商户App）可參閱Apple开发文檔 https://developer.apple.com/documentation/xcode/supporting-universal-links-in-your-app
    NSString *callbackURL = @"https://img-int.qfapi.com/trade/123"; //

    // 2. 封装數據為字典（包含URL和callback）
    NSDictionary *paymentPayload = @{
        @"URL": paymentRequestURL,
        @"callback": callbackURL
    };

    NSItemProvider *itemProvider = [[NSItemProvider alloc]
            initWithItem:paymentPayload
            typeIdentifier:@"hk.com.hkicl"];

    // 4. 創建NSExtensionItem并添加附件
    NSExtensionItem *extensionItem = [[NSExtensionItem alloc] init];
    extensionItem.attachments = @[itemProvider];

    // 5. 初始化UIActivityViewController（系统應用選擇器）
    UIActivityViewController *activityVC = [[UIActivityViewController alloc]
                                            initWithActivityItems:@[extensionItem]
                                            applicationActivities:nil];

    // 6. 適配iPad（必須指定彈出位置，否則崩潰）
    if ([[UIDevice currentDevice] userInterfaceIdiom] == UIUserInterfaceIdiomPad) {
        activityVC.popoverPresentationController.sourceView = [self getCurrentWindowRootVC].view;
        activityVC.popoverPresentationController.sourceRect = [self getCurrentWindowRootVC].view.frame; // 從按鈕位置彈出
        activityVC.popoverPresentationController.permittedArrowDirections = UIPopoverArrowDirectionUp;
    }

    // 7. 處理擴展返回的臨時结果（非最終支付結果，僅作參考）
    activityVC.completionWithItemsHandler = ^(UIActivityType  _Nullable activityType,
                                              BOOL completed,
                                              NSArray * _Nullable returnedItems,
                                              NSError * _Nullable error) {
        if (completed) {
            NSLog(@"用户选择了擴展：%@，處理完成", activityType);
            // 解析擴展返回的臨時數據（如支付已發起）

        } else if (error) {
            NSLog(@"擴展調用失敗：%@", error.localizedDescription);
        } else {
            NSLog(@"用户取消了操作");
        }
    };
    // 8. 展示應用選擇器
    [[self getCurrentWindowRootVC] presentViewController:activityVC animated:YES completion:nil];
}
- (void)showAlert{
    UIAlertController *alert = [UIAlertController alertControllerWithTitle:@"没有輸入參數"
                                                                   message:@"請先輸入FPS支付參數"
                                                            preferredStyle:UIAlertControllerStyleAlert];

    [alert addAction:[UIAlertAction actionWithTitle:@"确定"
                                               style:UIAlertActionStyleCancel
                                             handler:nil]];
    [[self getCurrentWindowRootVC] presentViewController:alert animated:YES completion:nil];
}
#pragma mark - 解析連結中的查詢參數
- (void)parseQueryParamsFromCallbackURL:(NSURL *)url {
    NSURLComponents *components = [NSURLComponents componentsWithURL:url resolvingAgainstBaseURL:NO];
    NSArray<NSURLQueryItem *> *queryItems = components.queryItems;

    NSMutableDictionary *params = [NSMutableDictionary dictionary];
    for (NSURLQueryItem *item in queryItems) {
        if (item.value) {
            params[item.name] = item.value;
        }
    }
    [self fpsPaymentResult: [params copy]];
}

@end

Swift

import Foundation
import UIKit
class FPSAppCallAppTool:NSObject{
    static let shared = FPSAppCallAppTool()

    func fpsPaymentResult(_ result: [String: Any]) {
        print(result)
        NotificationCenter.default.post(name: NSNotification.Name.init("kNotificationNameFPSPaymentH5CallAppResult"), object: result)
    }

    func invokePaymentExtension(paymentRequestURL: String?) {
        // 1. 獲取支付參數（从輸入框中讀取）
        guard let paymentRequestURL = paymentRequestURL, !paymentRequestURL.isEmpty else {
                showAlert()
                return
        }

        // 商户的Universal Link（用於支付完成後回調商户App）可參閱Apple開發文檔 https://developer.apple.com/documentation/xcode/supporting-universal-links-in-your-app
        let callbackURL = "https://img-int.qfapi.com/trade/123"; //

        // 2. 封裝數據为字典
        let paymentPayload: [String: String] = [
            "URL": paymentRequestURL,
            "callback": callbackURL
        ]

        // 3. 創建 NSItemProvider（注意：需使用 NSCoding 兼容類型，Dictionary 需轉為 NSDictionary）
        let itemProvider = NSItemProvider(
            item: paymentPayload as NSDictionary,
            typeIdentifier: "hk.com.hkicl"
        )

        // 4. 創建 NSExtensionItem 并添加附件
        let extensionItem = NSExtensionItem()
        extensionItem.attachments = [itemProvider]

        // 5. 初始化 UIActivityViewController
        let activityVC = UIActivityViewController(
            activityItems: [extensionItem],
            applicationActivities: nil
        )

        // 6. 適配 iPad（必須設置 popover）
        if UIDevice.current.userInterfaceIdiom == .pad,
            let rootVC = getCurrentWindowRootVC() {
            activityVC.popoverPresentationController?.sourceView = rootVC.view
            activityVC.popoverPresentationController?.sourceRect = rootVC.view.bounds
            activityVC.popoverPresentationController?.permittedArrowDirections = .up
        }

        // 7. 設置完成回調
        activityVC.completionWithItemsHandler = { [weak self] (activityType, completed, returnedItems, error) in
            if completed {
                print("用户选择了擴展：\(activityType?.rawValue ?? "unknown")，處理完成")
                // 可在此解析 returnedItems（如果擴展返回了數據）
            } else if let error = error {
                print("擴展调用失败：\(error.localizedDescription)")
            } else {
                print("用户取消了操作")
            }
        }

        // 8. 展示應用選擇器
        if let rootVC = getCurrentWindowRootVC() {
            rootVC.present(activityVC, animated: true, completion: nil)
        } else {
            showAlert(message: "無法獲取當前界面，無法啟動支付")
        }
    }

    private func getCurrentWindowRootVC() -> UIViewController? {
        for scene in UIApplication.shared.connectedScenes {
            guard let windowScene = scene as? UIWindowScene else { continue }
            for window in windowScene.windows where window.isKeyWindow {
                return window.rootViewController
            }
        }
        return nil
    }

    private func showAlert(title: String = "没有輸入參數",
                               message: String = "請先輸入FPS支付參數") {
        let alert = UIAlertController(title: title, message: message, preferredStyle: .alert)
        alert.addAction(UIAlertAction(title: "確定", style: .cancel))

        if let rootVC = getCurrentWindowRootVC() {
            rootVC.present(alert, animated: true)
        }
    }

    func parseQueryParamsFromCallbackURL(_ url: URL) {
        guard let components = URLComponents(url: url, resolvingAgainstBaseURL: false),
              let queryItems = components.queryItems else {
            return
        }

        var params: [String: String] = [:]
        for item in queryItems {
            if let value = item.value {
                params[item.name] = value
            }
        }

        fpsPaymentResult(params)
    }
}

3.2 iOS H5-to-App 雙向通信支付流程

H5 調用原生 App 的核心在於建立雙向通信機制，完成支付參數的傳遞與結果回傳。

1. H5 調用後端接口獲得支付參數
2. 使用 JsBridge 方法將支付參數傳遞給原生 App
3. App 接收到後呼叫 FPS App 進行支付（同 3.1 流程）
4. 支付完成後 App 將結果透過 evaluateJavaScript 回傳給 H5 顯示
5. 使用 WKWebView + JSBridge 實現，推薦參考範例程式碼整合

Objective-C WKWebview

#import "FPSWKWebView.h"
#import <WebKit/WebKit.h>
#import "FPSAppCallAppTool.h"
#import "define.h"
@interface FPSWKWebView ()<WKScriptMessageHandler, WKNavigationDelegate, WKUIDelegate>
@property(copy, nonatomic) NSString *callbackId;
@end

@implementation FPSWKWebView
- (instancetype)initWithFrame:(CGRect)frame{
    WKUserContentController *userContentController = [[WKUserContentController alloc] init];
    [userContentController addScriptMessageHandler:self name:@"NativeBridge"]; // 注册名為 "NativeBridge" 的通道

    WKWebViewConfiguration *config = [[WKWebViewConfiguration alloc] init];
    // web内容處理池
    config.processPool = [[WKProcessPool alloc] init];
    config.userContentController = userContentController;
    // 在iOS上默認為NO，表示不能自動通過窗口打開
    config.preferences.javaScriptCanOpenWindowsAutomatically = YES;
    //    config.preferences.javaScriptEnabled = YES;
    [config.preferences setValue:@YES forKey:@"allowFileAccessFromFileURLs"];

    self = [super initWithFrame:frame configuration:config];
    if (self) {
        self.autoresizingMask = UIViewAutoresizingFlexibleWidth | UIViewAutoresizingFlexibleHeight;
        self.navigationDelegate = self;
        self.UIDelegate = self;
        if (@available(iOS 16.4, *)) {
            self.inspectable = YES;
        }
        [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(fpsPaymentResult:) name:kNotificationNameFPSPaymentH5CallAppResult object:nil];
    }
    return self;
}
- (void)fpsPaymentResult:(NSNotification *)notification {
    NSLog(@"%@", notification.object);
    NSDictionary *params = nil;
    NSString *ret = notification.object[@"is_successful"];
    if ([ret isEqualToString: @"0"]) {
        params = @{
            @"code": @"3000",
            @"respmsg": @"Failed",
        };
    }else{
        params = @{
            @"code": @"0000",
            @"respmsg": @"Success",
        };
    }

    // 將 userInfo 轉為 JSON 字符串，再拼成 JS 函数調用
    NSError *error;
    NSData *jsonData = [NSJSONSerialization dataWithJSONObject:params options:0 error:&error];
    if (error) {
        NSLog(@"JSON 序列化失敗: %@", error);
        return;
    }
    NSString *jsonString = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];

    // 構造 JS 代碼
    NSString *jsCode = [NSString stringWithFormat:@"window.handleNativeCallback('%@', '%@');", self.callbackId, jsonString];

    // 主動調用 JS 回調
    [self evaluateJavaScript:jsCode completionHandler:^(id _Nullable result, NSError * _Nullable error) {
        if (error) {
            NSLog(@"❌❌❌❌❌JS 注入失敗: %@", error);
        } else {
            NSLog(@"✅✅✅✅✅✅ JS 注入成功");
        }
    }];
}
#pragma mark - WKScriptMessageHandler
// 處理 JS 發來的消息
- (void)userContentController:(WKUserContentController *)userContentController
      didReceiveScriptMessage:(WKScriptMessage *)message {

    if ([message.name isEqualToString:@"NativeBridge"]) {
        NSDictionary *body = message.body;

        // 假設 JS 傳了 { action: "getUserInfo", callback: "callback_123" }
        NSString *action = body[@"action"];
        NSString *callbackId = body[@"callbackId"]; // 回調函數名
        if ([action isEqualToString:@"FPSH5CallApp"]) {
            // 模擬原生數據
            NSString *paymentRequestURL = body[@"params"][@"paymentRequestURL"];
            self.callbackId = callbackId;
            [[FPSAppCallAppTool shareInstance] invokePaymentExtension:paymentRequestURL];
        }
    }
}
- (UIViewController *)getCurrentWindowRootVC {
    for (UIScene *scene in [UIApplication sharedApplication].connectedScenes) {
        if ([scene isKindOfClass:[UIWindowScene class]]) {
            UIWindowScene *windowScene = (UIWindowScene *)scene;
            for (UIWindow *window in windowScene.windows) {
                if (window.isKeyWindow) {
                    return window.rootViewController;
                }
            }
        }
    }
    return nil;
}

#pragma mark - WKUIDelegate
- (void)webView:(WKWebView *)webView runJavaScriptAlertPanelWithMessage:(nonnull NSString *)message initiatedByFrame:(nonnull WKFrameInfo *)frame completionHandler:(nonnull WK_SWIFT_UI_ACTOR void (^)(void))completionHandler{
    NSLog(@"%@", message);
    UIAlertController *alert = [UIAlertController alertControllerWithTitle:@"提示"
                                                                       message:message
                                                                preferredStyle:UIAlertControllerStyleAlert];
    [alert addAction:[UIAlertAction actionWithTitle:@"確定"
                                               style:UIAlertActionStyleDefault
                                             handler:^(UIAlertAction * _Nonnull action) {
        completionHandler(); // 必须調用，否則 JS 會卡住
    }]];

    [[self getCurrentWindowRootVC] presentViewController:alert animated:YES completion:nil];
}
#pragma mark - WKNavigationDelegate
- (void)webView:(WKWebView *)webView didStartProvisionalNavigation:(WKNavigation *)navigation {
    NSLog(@"監聽頁面開始加載...");
}

- (void)webView:(WKWebView *)webView didFinishNavigation:(WKNavigation *)navigation {
    NSLog(@"✅ 頁面加載成功: %@", webView.URL);
    // 注入回調處理函數到 JS 全局作用域
//    NSString *setupJS = @"if (typeof window.handleNativeCallback !== 'function') {"
//        @"window.nativeCallbacks = {};"
//        @"window.handleNativeCallback = function(callbackId, result) {"
//            @"var callback = window.nativeCallbacks[callbackId];"
//            @"if (callback && typeof callback === 'function') {"
//                @"callback(result);"
//                @"delete window.nativeCallbacks[callbackId];"
//            @"}"
//        @"};"
//        @"void(0);"   // ← 關鍵！强制返回 undefined
//        @"}";
//    [self evaluateJavaScript:setupJS completionHandler:^(id _Nullable result, NSError * _Nullable error) {
//        if (error) {
//            NSLog(@"❌ JS 注入失敗: %@", error);
//        } else {
//            NSLog(@"✅ JS 注入成功");
//        }
//    }];
}

- (void)webView:(WKWebView *)webView didFailNavigation:(WKNavigation *)navigation withError:(NSError *)error {
    NSLog(@"❌ 導航失敗: %@", error.localizedDescription);
}

- (void)webView:(WKWebView *)webView didFailProvisionalNavigation:(WKNavigation *)navigation withError:(NSError *)error {
    NSLog(@"❌ 頁面加載失敗（如 DNS、SSL、網絡問題）: %@", error.localizedDescription);
    NSLog(@"錯誤詳情: %@", error);
}

- (void)dealloc {
    // 移除 handler，防止内存泄漏
    [self.configuration.userContentController removeScriptMessageHandlerForName:@"NativeBridge"];
    [[NSNotificationCenter defaultCenter] removeObserver:self name:kNotificationNameFPSPaymentH5CallAppResult object:nil];
}
@end

Swift WKWebview

@preconcurrency import WebKit
import UIKit
class FPSWKWebView: WKWebView{

    private var callbackId: String?

    init(frame: CGRect) {
        let userContentController = WKUserContentController()

        // 2. 配置 WebView
        let configuration = WKWebViewConfiguration()
        configuration.userContentController = userContentController
        configuration.processPool = WKProcessPool()
        configuration.preferences.javaScriptCanOpenWindowsAutomatically = true

        super.init(frame: frame, configuration: configuration)
        userContentController.add(self, name: "NativeBridge")

        navigationDelegate = self
        uiDelegate = self

        if #available(iOS 16.4, *){
            isInspectable = true
        }
        NotificationCenter.default.addObserver(self, selector: #selector(fpsPaymentResult(_:)), name: Notification.Name.init(rawValue: "kNotificationNameFPSPaymentH5CallAppResult"), object: nil)
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }
    // 支付结果處理（接收来自 FPSAppCallAppTool 的通知）
    @objc private func fpsPaymentResult(_ notification: Notification) {
        guard let paramsDict = notification.object as? [String: Any],
              let isSuccess = paramsDict["is_successful"] as? String else {
            return
        }

        // 構造返回给 JS 的結果
        let result: [String: String] = Int(isSuccess) == 0 ? [
            "code": "3000",
            "respmsg": "Failed"
        ] : [
            "code": "0000",
            "respmsg": "Success"
        ]

        // 序列化为 JSON 字符串
        guard let jsonData = try? JSONSerialization.data(withJSONObject: result, options: []),
              let jsonString = String(data: jsonData, encoding: .utf8) else {
            print("❌ JSON 序列化失败")
            return
        }

        // 構造 JS 調用代碼：window.handleNativeCallback('callbackId', '{"code":"0000",...}')
        guard let callbackId = callbackId else {
            print("⚠️ 無有效的 callbackId，無法回調 JS")
            return
        }

        let jsCode = "window.handleNativeCallback('\(callbackId)', '\(jsonString)');"

        // 執行 JS
        evaluateJavaScript(jsCode) { result, error in
            if let error = error {
                print("❌ JS 注入失敗: \(error)")
            } else {
                print("✅ JS 回調注入成功")
            }
        }
    }

    // 獲取rootVC
    func getCurrentWindowRootVC() -> UIViewController? {
        for scene in UIApplication.shared.connectedScenes {
            guard let windowScene = scene as? UIWindowScene else { continue }
            for window in windowScene.windows where window.isKeyWindow {
                return window.rootViewController
            }
        }
        return nil
    }
    deinit{
        NotificationCenter.default.removeObserver(self)
    }
}
extension FPSWKWebView: WKScriptMessageHandler{
    func userContentController(_ userContentController: WKUserContentController, didReceive message: WKScriptMessage) {
        guard message.name == "NativeBridge",
            let body = message.body as? [String: Any] else {
            return
        }

        guard let action = body["action"] as? String else { return }

        if action == "FPSH5CallApp" {
           // 提取參數
           guard let params = body["params"] as? [String: Any],
                 let paymentRequestURL = params["paymentRequestURL"] as? String else {
               return
           }

           // 保存回調 ID（由 JS 傳入）
           callbackId = body["callbackId"] as? String

           // 調起支付擴展
           FPSAppCallAppTool.shared.invokePaymentExtension(paymentRequestURL: paymentRequestURL)
        }
    }
}
extension FPSWKWebView: WKUIDelegate{
    func webView(
            _ webView: WKWebView,
            runJavaScriptAlertPanelWithMessage message: String,
            initiatedByFrame frame: WKFrameInfo,
            completionHandler: @escaping () -> Void
        ) {
            let alert = UIAlertController(title: "提示", message: message, preferredStyle: .alert)
            alert.addAction(UIAlertAction(title: "确定", style: .default) { _ in
                completionHandler() // ⚠️ 必須調用！否則 JS 阻塞
            })

            // 獲取當前頂層 ViewController 並彈出
            if let topVC = getCurrentWindowRootVC() {
                topVC.present(alert, animated: true)
            } else {
                // 安全兜底：避免 JS 卡死
                completionHandler()
            }
        }
}
extension FPSWKWebView: WKNavigationDelegate{
    func webView(_ webView: WKWebView, didStartProvisionalNavigation navigation: WKNavigation!) {
        print("監聽頁面開始加載...");
    }
    func webView(_ webView: WKWebView, didFinish navigation: WKNavigation!) {
        print("✅ 頁面加載成功: %@", webView.url as Any);
    }
    func webView(_ webView: WKWebView, didFail navigation: WKNavigation!, withError error: any Error) {
        print("❌ 導航失敗: %@", error.localizedDescription);
    }
    func webView(_ webView: WKWebView, didFailProvisionalNavigation navigation: WKNavigation!, withError error: any Error) {
        print("❌ 頁面加載失敗（如 DNS、SSL、網絡問題）: %@", error.localizedDescription);
        print("錯誤詳情: %@", error);
    }
}

JsBridge

function isAndroidPhone() {
    const ua = navigator.userAgent.toLowerCase();
    return /android/i.test(ua);
}

const iOSCallNative = (action: string, params:any = {}) => {
    return new Promise((resolve, reject) => {
        const callbackId = 'cb_' + Date.now() + '_' + Date.now();
        if (window?.webkit?.messageHandlers?.NativeBridge) {
            // 註冊回調
            const callbacks = window?.nativeCallbacks;
            if (callbacks) {
                callbacks[callbackId] = resolve;
            }
            window?.webkit?.messageHandlers.NativeBridge.postMessage({
                action: action,
                params: params,
                callbackId: callbackId
            });
        } else {
            reject(new Error('Not in WKWebView'));
        }
    });
}
const androidCallNative = (action: string, params:any = {}) => {
    // 檢查是否在Android WebView環境中
    return new Promise((resolve, reject) => {
        const callbackId = 'cb_' + Date.now() + '_' + Date.now();
        if (window?.AndroidInterface && typeof window?.AndroidInterface.handleMessage === 'function') {
            // 調用Android原生方法
            const callbacks = window?.nativeCallbacks;
            if (callbacks) {
                callbacks[callbackId] = resolve;
            }
            window?.AndroidInterface.handleMessage(JSON.stringify({
                action: action,
                params: params,
                callbackId: callbackId
            }));
        }else {
            reject(new Error('Not in WKWebView'));
        }
    })
}
export const callNative = (action: string, params:any = {}) => {
    if (typeof window.handleNativeCallback !== 'function') {
        window.nativeCallbacks = {};
        window.handleNativeCallback = function(callbackId: string, result: any) {
            const callbackMap = window?.nativeCallbacks;
            if (callbackMap) {
                let callback = callbackMap[callbackId];
                if (callback && typeof callback === 'function') {
                    callback(result);
                    delete callbackMap[callbackId];
                }
            }

        };
    }
    if (isAndroidPhone()) {
        return androidCallNative(action, params);
    }else {
        return iOSCallNative(action, params);
    }
}

---

下載範例 Demo

• Android 原生 App-to-App 示範：FPS H5 Demo

• Android H5-to-App 示範：FPS H5 Demo

• Objective-C 示範: FPS Objective-C Demo

• Swift 示範: FPS Swift Demo

• JSBridge 示範: fps-jsBridge Demo
