FPS App-to-App Integration Guide

This page explains how a merchant App or H5 page can use QFPay API, Android Intents, or iOS Universal Links to launch bank payment apps and complete FPS App-to-App payment flows. Android and iOS platforms are supported. Code samples and demo links are provided.

---

Integration Overview

This guide provides integration methods for FPS App-to-App payments across Android and iOS platforms. Based on your app architecture, choose the relevant flow from below.

Platform	Flow Type	Usage Scenario	Launch Method
Android	Native App	Your Android app directly triggers FPS	Intent to FPS App
Android	H5 to App	WebView in Android app triggers FPS	JSBridge + Intent
iOS	Native App	Your iOS app directly triggers FPS	UIActivityViewController
iOS	H5 to App	WKWebView in iOS app triggers FPS	WKWebView + JSBridge

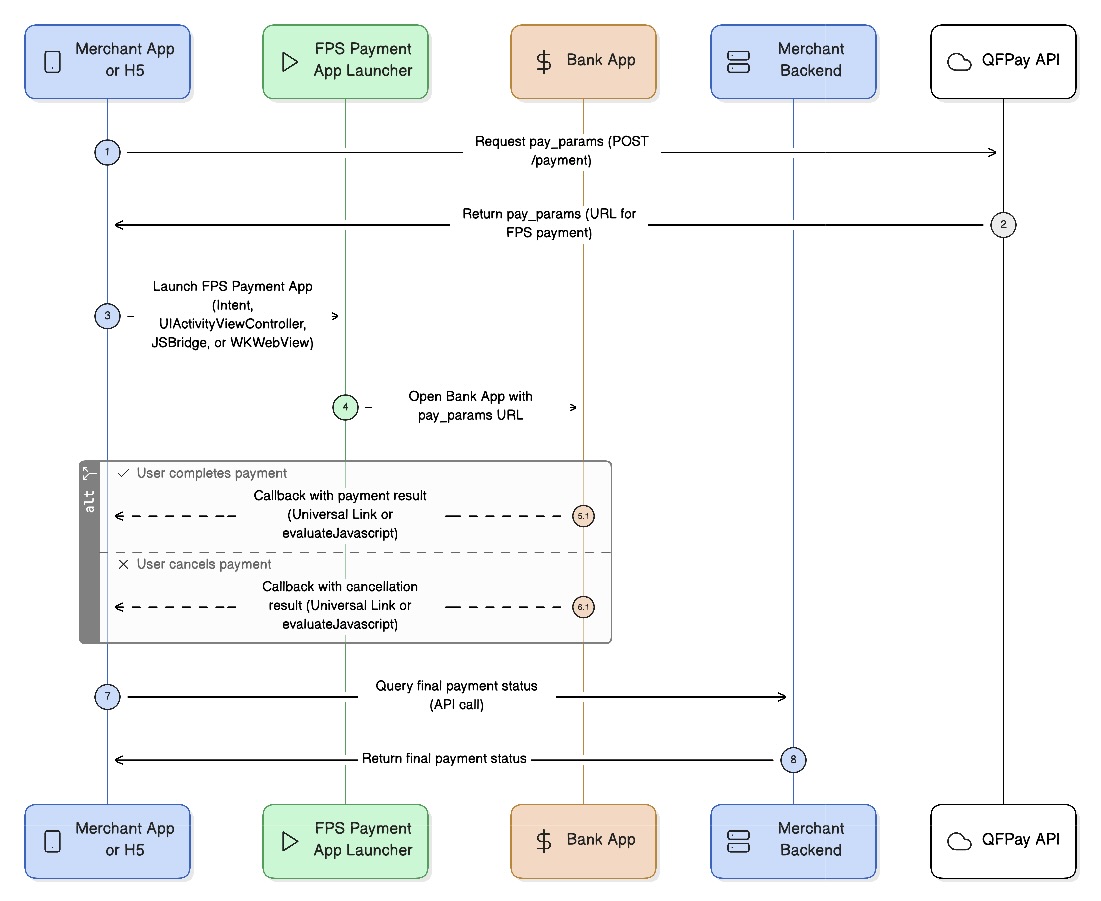

For each integration method, you will:

1. Retrieve payment link via API.
2. Use platform-specific code to open the FPS bank app.
3. Receive callback and verify result.

1. Retrieve Payment Parameters

API Endpoint: /trade/v1/payment Method: POST PayType: 800210

Request Parameters

Parameter	Required	Type	Description
pay_type	✅	String	Fixed value 800210 for FPS App-to-App
txamt	✅	Int	Transaction amount in cents (e.g., 100 = $1)
txdtm	✅	String	Transaction time (format: YYYY-MM-DD hh:mm:ss)
out_trade_no	✅	String	Merchant’s unique transaction reference
...	...	...	See Public Request Parameters for more

For HSBC FPS Merchants Only

If your FPS integration is via HSBC direct channel, you must apply for a dedicated domain SSL certificate that matches your merchant legal name.

This is required to:

• Enable secure callbacks via Universal Links (iOS) or HTTPS redirects (Android)
• Complete certification with HSBC and pass production onboarding

📄 See FPS e-Cert Setup Guide for application steps, CSR command, and document checklist.

Response Parameters

Name	Type	Description
Public Params	-	See Public Response Parameters
pay_params	String(128)	URL to launch the FPS payment app, e.g. https://fps.xxx/xxx

---

2. Android FPS Payment Flow

2.1 Native App-to-App Flow (Android)

This flow allows a native Android app to directly launch a bank payment app via Intent. The result is returned through onActivityResult. You should still verify final payment status via your backend.

1. The merchant retrieves the pay_params URL from API
2. Use Android Intent to launch the FPS payment app
3. Set Intent Action to hk.com.hkicl, Key: url, Value: pay URL
4. Use startActivityForResult to launch the bank app
5. Handle result in onActivityResult
6. Merchant should verify final result using their own order query API

Reference Code: Android Java Example

// Request code to identify the payment result
int payRequestCode = 100;

// Payment URL retrieved from the backend
String payUrl = "https://fps.qfpay.global/trade/v1/urltranslate/PAYCORE_SHORT_URL_202511075370911194";

// Create an Intent to launch the target payment app (e.g., bank app)
Intent intent = new Intent("hk.com.hkicl");

// Add the payment URL as a parameter to the Intent
intent.putExtra("url", payUrl);

// Start the payment app using the Intent
startActivityForResult(intent, payRequestCode);


// Handle the result returned from the payment app
@Override
public void onActivityResult(int requestCode, int resultCode, @Nullable Intent data, @NonNull ComponentCaller caller) {
    super.onActivityResult(requestCode, resultCode, data, caller);
    if (requestCode == payRequestCode) {
        // Check payment result
        if (resultCode == RESULT_OK) {
            // Payment success
        } else if (resultCode == RESULT_CANCELED) {
            // Payment failed or cancelled
        }
    }
}

2.2 H5-to-App Flow via Android WebView

This flow is for Android apps using WebView to trigger FPS bank payment app from an H5 page using JSBridge.”

1. WebView must enable JavaScript: setJavaScriptEnabled(true)
2. Bind JS bridge via addJavascriptInterface
3. H5 invokes Android with: AndroidBridge.handleMessage(JSON.stringify({ url: 'https://fps.qfapi.com/xxx' }))
4. Android receives and constructs Intent to launch FPS payment app
5. Use startActivityForResult to start payment
6. On result, use evaluateJavascript to send result back to H5
7. Merchant should verify with their backend API

Reference Code: Android WebView Example — See full demo below.

public class Web2AppCallPayActivity extends Activity {

    /**
     * The H5 payment page URL loaded by the merchant app
     */
    private static final String WEB_PAY_LINK = "https://img-int.qfapi.com/upstatic/20251119/fpsH5CallApp/index.html";

    /**
     * Internal WebView component of the merchant app
     */
    private WebView webView;

    /**
     * Callback ID provided when H5 initiates payment
     */
    private String callBackId;

    /**
     * Request code used to identify payment result
     */
    int payRequestCode = 100;

    @Override
    public void onCreate(@Nullable Bundle savedInstanceState, @Nullable PersistableBundle persistentState) {
        super.onCreate(savedInstanceState, persistentState);
        setContentView(R.layout.more_view);

        webView = findViewById(R.id.web_pay);
        // Enable JavaScript interaction in WebView
        webView.getSettings().setJavaScriptEnabled(true);
        // Bind JavaScript interface for communication from H5 to App
        webView.addJavascriptInterface(this, "AndroidInterface");
        // Load the H5 payment page
        webView.loadUrl(WEB_PAY_LINK);
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, @Nullable Intent data, @NonNull ComponentCaller caller) {
        super.onActivityResult(requestCode, resultCode, data, caller);
        if (requestCode == payRequestCode) { // Return result from launching payment

            // Wrap the result into an object and convert to JSON string to return to H5
            EvaluateBean evaluateBean = new EvaluateBean();
            evaluateBean.setCode(resultCode); // Set result code
            if (resultCode == RESULT_OK) { // Payment successful
                evaluateBean.setRespmsg("Pay Success");
            } else if (resultCode == RESULT_CANCELED) {  // Payment cancelled
                evaluateBean.setRespmsg("Pay Cancel");
            }
            String evaluateJson = new Gson().toJson(evaluateBean); // Convert result to JSON

            // Return payment result to H5 by invoking `window.handleNativeCallback()`
            // Two parameters are passed:
            // 1. callbackId passed in by H5 when initiating payment
            // 2. Result object (code and message), converted to JSON string
            webView.evaluateJavascript("javascript:window.handleNativeCallback('" + callBackId + ")" + ",(" + evaluateJson + "')", null);
        }
    }

    /**
     * This method is called by the H5 page to notify the merchant app to start payment
     * It must be annotated with @JavascriptInterface and named `handleMessage`
     *
     * @param paramFromWebPay The payment parameters passed from H5
     */
    @JavascriptInterface
    public void handleMessage(String paramFromWebPay) {
        if (TextUtils.isEmpty(paramFromWebPay)) return;
        WebParamsBean webParamsBean = new Gson().fromJson(paramFromWebPay, WebParamsBean.class);

        // Store the callback ID for later result response
        callBackId = webParamsBean.getCallbackId();

        // Retrieve the payment URL returned from H5
        String paymentRequestURL = webParamsBean.getParams().getPaymentRequestURL();

        // Launch the local bank app to start payment
        launchBankPay(paymentRequestURL);
    }

    /**
     * Merchant app launches local bank app with the payment request URL
     *
     * @param paymentRequestURL The payment URL passed from H5
     */
    private void launchBankPay(String paymentRequestURL) {
        Intent intent = new Intent("hk.com.hkicl");
        intent.putExtra("url", paymentRequestURL);
        startActivityForResult(intent, payRequestCode);
    }
}

---

3. iOS FPS Payment Flow

3.1 Native App-to-App Flow

This iOS integration uses UIActivityViewController and App Extensions to trigger the FPS bank app from a native app.

1. Merchant calls API to retrieve pay URL (pay_params)
2. iOS App uses UIActivityViewController + App Extension to launch bank app
3. Consumer completes payment and redirects back using callback Universal Link
4. Merchant verifies result via internal order API

Integration Steps

• Create a NSExtensionItem
• Package pay_params and callback inside NSItemProvider
• Set UTI type to hk.com.hkicl
• Use UIActivityViewController to launch app selector

🔗 Official Apple Docs:

• Supporting Universal Links
• Configuring Associated Domains

Objective-C

#import "FPSAppCallAppTool.h"
#import <UIKit/UIKit.h>
#import "define.h"

@implementation FPSAppCallAppTool

+ (FPSAppCallAppTool *)shareInstance {
    static FPSAppCallAppTool *model = nil;
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        if (!model) {
            model = [[FPSAppCallAppTool alloc] init];
        }
    });
    return model;
}

// Handle and broadcast the FPS payment result
- (void)fpsPaymentResult:(NSDictionary *)result {
    NSLog(@"%@", result);
    [[NSNotificationCenter defaultCenter] postNotificationName:kNotificationNameFPSPaymentH5CallAppResult
                                                        object:result];
}

// Get the current active root ViewController
- (UIViewController *)getCurrentWindowRootVC {
    for (UIScene *scene in [UIApplication sharedApplication].connectedScenes) {
        if ([scene isKindOfClass:[UIWindowScene class]]) {
            UIWindowScene *windowScene = (UIWindowScene *)scene;
            for (UIWindow *window in windowScene.windows) {
                if (window.isKeyWindow) {
                    return window.rootViewController;
                }
            }
        }
    }
    return nil;
}

- (void)invokePaymentExtension:(NSString *)paymentRequestURL {
    // 1. Retrieve payment parameter URL
    // (Example: https://fps.qfpay.global/trade/v1/urltranslate/PAYCORE_SHORT_URL_202511075370911194)
    // In demo mode, this value can be entered manually via input field
    @try {
        if (!paymentRequestURL || paymentRequestURL.length <= 0) {
            [self showAlert];
            return;
        }
    } @catch (NSException *exception) {
        return;
    }

    // Merchant Universal Link for callback after payment
    // Refer to Apple documentation:
    // https://developer.apple.com/documentation/xcode/supporting-universal-links-in-your-app
    NSString *callbackURL = @"https://img-int.qfapi.com/trade/123";

    // 2. Package URL and callback into a dictionary
    NSDictionary *paymentPayload = @{
        @"URL": paymentRequestURL,
        @"callback": callbackURL
    };

    NSItemProvider *itemProvider = [[NSItemProvider alloc]
        initWithItem:paymentPayload
        typeIdentifier:@"hk.com.hkicl"];

    // 4. Create NSExtensionItem and attach payload
    NSExtensionItem *extensionItem = [[NSExtensionItem alloc] init];
    extensionItem.attachments = @[itemProvider];

    // 5. Initialise UIActivityViewController (system app chooser)
    UIActivityViewController *activityVC = [[UIActivityViewController alloc]
        initWithActivityItems:@[extensionItem]
        applicationActivities:nil];

    // 6. iPad adaptation (popover must be specified to avoid crash)
    if ([[UIDevice currentDevice] userInterfaceIdiom] == UIUserInterfaceIdiomPad) {
        activityVC.popoverPresentationController.sourceView =
            [self getCurrentWindowRootVC].view;
        activityVC.popoverPresentationController.sourceRect =
            [self getCurrentWindowRootVC].view.frame;
        activityVC.popoverPresentationController.permittedArrowDirections =
            UIPopoverArrowDirectionUp;
    }

    // 7. Handle temporary results returned by the extension
    // (This is NOT the final payment status)
    activityVC.completionWithItemsHandler = ^(UIActivityType _Nullable activityType,
                                              BOOL completed,
                                              NSArray * _Nullable returnedItems,
                                              NSError * _Nullable error) {
        if (completed) {
            NSLog(@"User selected extension: %@, process completed", activityType);
            // Temporary extension return data can be parsed here if required
        } else if (error) {
            NSLog(@"Extension invocation failed: %@", error.localizedDescription);
        } else {
            NSLog(@"User cancelled the operation");
        }
    };

    // 8. Present the system app chooser
    [[self getCurrentWindowRootVC] presentViewController:activityVC
                                                animated:YES
                                              completion:nil];
}

// Alert when payment parameter is missing
- (void)showAlert {
    UIAlertController *alert = [UIAlertController
        alertControllerWithTitle:@"Missing Parameters"
                         message:@"Please enter FPS payment parameters first"
                  preferredStyle:UIAlertControllerStyleAlert];

    [alert addAction:[UIAlertAction actionWithTitle:@"OK"
                                              style:UIAlertActionStyleCancel
                                            handler:nil]];

    [[self getCurrentWindowRootVC] presentViewController:alert
                                                animated:YES
                                              completion:nil];
}

#pragma mark - Parse query parameters from callback URL
- (void)parseQueryParamsFromCallbackURL:(NSURL *)url {
    NSURLComponents *components =
        [NSURLComponents componentsWithURL:url
                    resolvingAgainstBaseURL:NO];
    NSArray<NSURLQueryItem *> *queryItems = components.queryItems;

    NSMutableDictionary *params = [NSMutableDictionary dictionary];
    for (NSURLQueryItem *item in queryItems) {
        if (item.value) {
            params[item.name] = item.value;
        }
    }

    [self fpsPaymentResult:[params copy]];
}

@end

Swift

import Foundation
import UIKit

class FPSAppCallAppTool: NSObject {
    static let shared = FPSAppCallAppTool()

    /// Broadcast FPS payment result using NotificationCenter
    func fpsPaymentResult(_ result: [String: Any]) {
        print(result)
        NotificationCenter.default.post(
            name: NSNotification.Name("kNotificationNameFPSPaymentH5CallAppResult"),
            object: result
        )
    }

    /// Invoke FPS payment via iOS App Extension
    func invokePaymentExtension(paymentRequestURL: String?) {
        // 1. Retrieve payment parameters (e.g. from input field)
        guard let paymentRequestURL = paymentRequestURL, !paymentRequestURL.isEmpty else {
            showAlert()
            return
        }

        // Merchant's Universal Link for payment callback
        // See Apple docs: https://developer.apple.com/documentation/xcode/supporting-universal-links-in-your-app
        let callbackURL = "https://img-int.qfapi.com/trade/123"

        // 2. Package data as dictionary
        let paymentPayload: [String: String] = [
            "URL": paymentRequestURL,
            "callback": callbackURL
        ]

        // 3. Create NSItemProvider
        // Note: Dictionary must conform to NSCoding, so cast as NSDictionary
        let itemProvider = NSItemProvider(
            item: paymentPayload as NSDictionary,
            typeIdentifier: "hk.com.hkicl"
        )

        // 4. Create NSExtensionItem and attach payload
        let extensionItem = NSExtensionItem()
        extensionItem.attachments = [itemProvider]

        // 5. Create UIActivityViewController to launch external apps
        let activityVC = UIActivityViewController(
            activityItems: [extensionItem],
            applicationActivities: nil
        )

        // 6. iPad-specific: Configure popover presentation to avoid crash
        if UIDevice.current.userInterfaceIdiom == .pad,
           let rootVC = getCurrentWindowRootVC() {
            activityVC.popoverPresentationController?.sourceView = rootVC.view
            activityVC.popoverPresentationController?.sourceRect = rootVC.view.bounds
            activityVC.popoverPresentationController?.permittedArrowDirections = .up
        }

        // 7. Handle activity result (Note: not actual payment status)
        activityVC.completionWithItemsHandler = { [weak self] activityType, completed, returnedItems, error in
            if completed {
                print("User selected extension: \(activityType?.rawValue ?? "unknown"), completed")
                // You may parse returnedItems here if needed
            } else if let error = error {
                print("Extension failed: \(error.localizedDescription)")
            } else {
                print("User cancelled the operation")
            }
        }

        // 8. Present the app chooser
        if let rootVC = getCurrentWindowRootVC() {
            rootVC.present(activityVC, animated: true)
        } else {
            showAlert(message: "Unable to get current view. Cannot initiate payment.")
        }
    }

    /// Get the current root UIViewController
    private func getCurrentWindowRootVC() -> UIViewController? {
        for scene in UIApplication.shared.connectedScenes {
            guard let windowScene = scene as? UIWindowScene else { continue }
            for window in windowScene.windows where window.isKeyWindow {
                return window.rootViewController
            }
        }
        return nil
    }

    /// Display alert with default or custom message
    private func showAlert(
        title: String = "Missing Parameter",
        message: String = "Please enter the FPS payment parameter first"
    ) {
        let alert = UIAlertController(title: title, message: message, preferredStyle: .alert)
        alert.addAction(UIAlertAction(title: "OK", style: .cancel))

        if let rootVC = getCurrentWindowRootVC() {
            rootVC.present(alert, animated: true)
        }
    }

    /// Parse query parameters from the callback URL after payment
    func parseQueryParamsFromCallbackURL(_ url: URL) {
        guard let components = URLComponents(url: url, resolvingAgainstBaseURL: false),
              let queryItems = components.queryItems else {
            return
        }

        var params: [String: String] = [:]
        for item in queryItems {
            if let value = item.value {
                params[item.name] = value
            }
        }

        fpsPaymentResult(params)
    }
}

---

3.2 H5-to-App Flow via WKWebView

This is for H5 pages rendered in iOS WKWebView, which use JSBridge to trigger the bank app and return result.

1. H5 retrieves pay parameters from API
2. Use JsBridge to send pay_params to native app
3. Native app launches FPS App via UIActivityViewController
4. After payment, native app sends result back to H5 via evaluateJavaScript
5. Implemented using WKWebView + JSBridge

Objective-C WKWebview

#import "FPSWKWebView.h"
#import <WebKit/WebKit.h>
#import "FPSAppCallAppTool.h"
#import "define.h"

@interface FPSWKWebView ()<WKScriptMessageHandler, WKNavigationDelegate, WKUIDelegate>
@property(copy, nonatomic) NSString *callbackId;
@end

@implementation FPSWKWebView

- (instancetype)initWithFrame:(CGRect)frame{
    WKUserContentController *userContentController = [[WKUserContentController alloc] init];

    // Register JavaScript message channel named "NativeBridge"
    [userContentController addScriptMessageHandler:self name:@"NativeBridge"];

    WKWebViewConfiguration *config = [[WKWebViewConfiguration alloc] init];

    // Web process pool
    config.processPool = [[WKProcessPool alloc] init];
    config.userContentController = userContentController;

    // Allow JavaScript to open windows automatically
    config.preferences.javaScriptCanOpenWindowsAutomatically = YES;

    // Allow file access if needed
    [config.preferences setValue:@YES forKey:@"allowFileAccessFromFileURLs"];

    self = [super initWithFrame:frame configuration:config];
    if (self) {
        self.autoresizingMask = UIViewAutoresizingFlexibleWidth | UIViewAutoresizingFlexibleHeight;
        self.navigationDelegate = self;
        self.UIDelegate = self;

        if (@available(iOS 16.4, *)) {
            self.inspectable = YES;
        }

        // Listen for FPS payment result notifications
        [[NSNotificationCenter defaultCenter] addObserver:self
                                                 selector:@selector(fpsPaymentResult:)
                                                     name:kNotificationNameFPSPaymentH5CallAppResult
                                                   object:nil];
    }
    return self;
}

#pragma mark - Receive Payment Result from Native App

- (void)fpsPaymentResult:(NSNotification *)notification {
    NSLog(@"%@", notification.object);

    NSDictionary *params = nil;
    NSString *ret = notification.object[@"is_successful"];

    // Construct payment result response
    if ([ret isEqualToString:@"0"]) {
        params = @{
            @"code": @"3000",
            @"respmsg": @"Failed",
        };
    } else {
        params = @{
            @"code": @"0000",
            @"respmsg": @"Success",
        };
    }

    // Convert result to JSON string
    NSError *error;
    NSData *jsonData = [NSJSONSerialization dataWithJSONObject:params options:0 error:&error];
    if (error) {
        NSLog(@"JSON serialization failed: %@", error);
        return;
    }

    NSString *jsonString = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];

    // Construct JavaScript callback
    NSString *jsCode = [NSString stringWithFormat:
        @"window.handleNativeCallback('%@', '%@');",
        self.callbackId,
        jsonString
    ];

    // Execute JavaScript callback
    [self evaluateJavaScript:jsCode completionHandler:^(id _Nullable result, NSError * _Nullable error) {
        if (error) {
            NSLog(@"❌ JavaScript injection failed: %@", error);
        } else {
            NSLog(@"✅ JavaScript callback executed successfully");
        }
    }];
}

#pragma mark - WKScriptMessageHandler
// Handle messages sent from JavaScript

- (void)userContentController:(WKUserContentController *)userContentController
      didReceiveScriptMessage:(WKScriptMessage *)message {

    if ([message.name isEqualToString:@"NativeBridge"]) {
        NSDictionary *body = message.body;

        // Example JS payload:
        // { action: "FPSH5CallApp", callbackId: "callback_123", params: {...} }

        NSString *action = body[@"action"];
        NSString *callbackId = body[@"callbackId"];   // JS callback ID

        if ([action isEqualToString:@"FPSH5CallApp"]) {
            // Retrieve payment request URL from H5
            NSString *paymentRequestURL = body[@"params"][@"paymentRequestURL"];
            self.callbackId = callbackId;

            // Launch FPS payment app
            [[FPSAppCallAppTool shareInstance] invokePaymentExtension:paymentRequestURL];
        }
    }
}

#pragma mark - Get Root View Controller

- (UIViewController *)getCurrentWindowRootVC {
    for (UIScene *scene in [UIApplication sharedApplication].connectedScenes) {
        if ([scene isKindOfClass:[UIWindowScene class]]) {
            UIWindowScene *windowScene = (UIWindowScene *)scene;
            for (UIWindow *window in windowScene.windows) {
                if (window.isKeyWindow) {
                    return window.rootViewController;
                }
            }
        }
    }
    return nil;
}

#pragma mark - WKUIDelegate
// Handle JavaScript alert dialogs

- (void)webView:(WKWebView *)webView
runJavaScriptAlertPanelWithMessage:(nonnull NSString *)message
initiatedByFrame:(nonnull WKFrameInfo *)frame
completionHandler:(nonnull WK_SWIFT_UI_ACTOR void (^)(void))completionHandler {

    NSLog(@"%@", message);

    UIAlertController *alert = [UIAlertController alertControllerWithTitle:@"Notice"
                                                                   message:message
                                                            preferredStyle:UIAlertControllerStyleAlert];

    [alert addAction:[UIAlertAction actionWithTitle:@"OK"
                                              style:UIAlertActionStyleDefault
                                            handler:^(UIAlertAction * _Nonnull action) {
        completionHandler(); // Must be called! Otherwise, JavaScript will hang.
    }]];

    [[self getCurrentWindowRootVC] presentViewController:alert animated:YES completion:nil];
}

#pragma mark - WKNavigationDelegate

- (void)webView:(WKWebView *)webView didStartProvisionalNavigation:(WKNavigation *)navigation {
    NSLog(@"Page started loading...");
}

- (void)webView:(WKWebView *)webView didFinishNavigation:(WKNavigation *)navigation {
    NSLog(@"✅ Page loaded successfully: %@", webView.URL);

    // Optional: Inject global JS callback handler here if needed
}

- (void)webView:(WKWebView *)webView
didFailNavigation:(WKNavigation *)navigation
       withError:(NSError *)error {
    NSLog(@"❌ Navigation failed: %@", error.localizedDescription);
}

- (void)webView:(WKWebView *)webView
didFailProvisionalNavigation:(WKNavigation *)navigation
       withError:(NSError *)error {
    NSLog(@"❌ Page loading failed (DNS / SSL / Network): %@", error.localizedDescription);
    NSLog(@"Error details: %@", error);
}

- (void)dealloc {
    // Remove JS handler to prevent memory leaks
    [self.configuration.userContentController removeScriptMessageHandlerForName:@"NativeBridge"];
    [[NSNotificationCenter defaultCenter] removeObserver:self
                                                    name:kNotificationNameFPSPaymentH5CallAppResult
                                                  object:nil];
}

@end

Swift WKWebview

@preconcurrency import WebKit
import UIKit

class FPSWKWebView: WKWebView {

    private var callbackId: String?

    init(frame: CGRect) {
        let userContentController = WKUserContentController()

        // 2. Configure WebView
        let configuration = WKWebViewConfiguration()
        configuration.userContentController = userContentController
        configuration.processPool = WKProcessPool()
        configuration.preferences.javaScriptCanOpenWindowsAutomatically = true

        super.init(frame: frame, configuration: configuration)
        userContentController.add(self, name: "NativeBridge") // Register JS bridge named "NativeBridge"

        navigationDelegate = self
        uiDelegate = self

        if #available(iOS 16.4, *) {
            isInspectable = true
        }

        NotificationCenter.default.addObserver(
            self,
            selector: #selector(fpsPaymentResult(_:)),
            name: Notification.Name("kNotificationNameFPSPaymentH5CallAppResult"),
            object: nil
        )
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    // Handle payment result notification (from FPSAppCallAppTool)
    @objc private func fpsPaymentResult(_ notification: Notification) {
        guard let paramsDict = notification.object as? [String: Any],
              let isSuccess = paramsDict["is_successful"] as? String else {
            return
        }

        // Construct result for JS
        let result: [String: String] = Int(isSuccess) == 0 ? [
            "code": "3000",
            "respmsg": "Failed"
        ] : [
            "code": "0000",
            "respmsg": "Success"
        ]

        // Serialize to JSON string
        guard let jsonData = try? JSONSerialization.data(withJSONObject: result, options: []),
              let jsonString = String(data: jsonData, encoding: .utf8) else {
            print("❌ Failed to serialize JSON")
            return
        }

        // Construct JS call: window.handleNativeCallback('callbackId', '{"code":"0000",...}')
        guard let callbackId = callbackId else {
            print("⚠️ No valid callbackId, cannot call back to JS")
            return
        }

        let jsCode = "window.handleNativeCallback('\(callbackId)', '\(jsonString)');"

        // Execute JS
        evaluateJavaScript(jsCode) { result, error in
            if let error = error {
                print("❌ Failed to inject JS: \(error)")
            } else {
                print("✅ JS callback injection successful")
            }
        }
    }

    // Get top-most root ViewController
    func getCurrentWindowRootVC() -> UIViewController? {
        for scene in UIApplication.shared.connectedScenes {
            guard let windowScene = scene as? UIWindowScene else { continue }
            for window in windowScene.windows where window.isKeyWindow {
                return window.rootViewController
            }
        }
        return nil
    }

    deinit {
        NotificationCenter.default.removeObserver(self)
    }
}

extension FPSWKWebView: WKScriptMessageHandler {
    // Handle message from JS
    func userContentController(_ userContentController: WKUserContentController, didReceive message: WKScriptMessage) {
        guard message.name == "NativeBridge",
              let body = message.body as? [String: Any] else {
            return
        }

        guard let action = body["action"] as? String else { return }

        if action == "FPSH5CallApp" {
            // Extract parameters
            guard let params = body["params"] as? [String: Any],
                  let paymentRequestURL = params["paymentRequestURL"] as? String else {
                return
            }

            // Save callback ID (passed from JS)
            callbackId = body["callbackId"] as? String

            // Trigger payment extension
            FPSAppCallAppTool.shared.invokePaymentExtension(paymentRequestURL: paymentRequestURL)
        }
    }
}

extension FPSWKWebView: WKUIDelegate {
    func webView(
        _ webView: WKWebView,
        runJavaScriptAlertPanelWithMessage message: String,
        initiatedByFrame frame: WKFrameInfo,
        completionHandler: @escaping () -> Void
    ) {
        let alert = UIAlertController(title: "Notice", message: message, preferredStyle: .alert)
        alert.addAction(UIAlertAction(title: "OK", style: .default) { _ in
            completionHandler() // ⚠️ Must be called, or JS will be blocked
        })

        // Show alert on the topmost ViewController
        if let topVC = getCurrentWindowRootVC() {
            topVC.present(alert, animated: true)
        } else {
            // Fallback: avoid JS lock-up
            completionHandler()
        }
    }
}

extension FPSWKWebView: WKNavigationDelegate {
    func webView(_ webView: WKWebView, didStartProvisionalNavigation navigation: WKNavigation!) {
        print("Started loading page...")
    }

    func webView(_ webView: WKWebView, didFinish navigation: WKNavigation!) {
        print("✅ Page loaded: \(String(describing: webView.url))")
    }

    func webView(_ webView: WKWebView, didFail navigation: WKNavigation!, withError error: any Error) {
        print("❌ Navigation failed: \(error.localizedDescription)")
    }

    func webView(_ webView: WKWebView, didFailProvisionalNavigation navigation: WKNavigation!, withError error: any Error) {
        print("❌ Page load failed (DNS, SSL, or network issue): \(error.localizedDescription)")
        print("Error details: \(error)")
    }
}

JsBridge

function isAndroidPhone() {
    const ua = navigator.userAgent.toLowerCase();
    return /android/i.test(ua);
}

// Call native function in iOS using WKWebView bridge
const iOSCallNative = (action: string, params: any = {}) => {
    return new Promise((resolve, reject) => {
        const callbackId = 'cb_' + Date.now() + '_' + Date.now();
        if (window?.webkit?.messageHandlers?.NativeBridge) {
            // Register callback
            const callbacks = window?.nativeCallbacks;
            if (callbacks) {
                callbacks[callbackId] = resolve;
            }
            window?.webkit?.messageHandlers.NativeBridge.postMessage({
                action: action,
                params: params,
                callbackId: callbackId
            });
        } else {
            reject(new Error('Not in WKWebView'));
        }
    });
}

// Call native function in Android using AndroidInterface bridge
const androidCallNative = (action: string, params: any = {}) => {
    return new Promise((resolve, reject) => {
        const callbackId = 'cb_' + Date.now() + '_' + Date.now();
        // Check if in Android WebView
        if (window?.AndroidInterface && typeof window?.AndroidInterface.handleMessage === 'function') {
            // Call Android native method
            const callbacks = window?.nativeCallbacks;
            if (callbacks) {
                callbacks[callbackId] = resolve;
            }
            window?.AndroidInterface.handleMessage(JSON.stringify({
                action: action,
                params: params,
                callbackId: callbackId
            }));
        } else {
            reject(new Error('Not in WKWebView'));
        }
    });
}

// Unified call entry point for iOS and Android
export const callNative = (action: string, params: any = {}) => {
    // Initialize global callback handler if not already set
    if (typeof window.handleNativeCallback !== 'function') {
        window.nativeCallbacks = {};
        window.handleNativeCallback = function(callbackId: string, result: any) {
            const callbackMap = window?.nativeCallbacks;
            if (callbackMap) {
                const callback = callbackMap[callbackId];
                if (callback && typeof callback === 'function') {
                    callback(result);
                    delete callbackMap[callbackId];
                }
            }
        };
    }

    // Route to platform-specific call
    if (isAndroidPhone()) {
        return androidCallNative(action, params);
    } else {
        return iOSCallNative(action, params);
    }
}

---

---

Error Handling & Fallbacks

General Result Codes

Code	Meaning
RESULT_OK	Payment app confirmed successful initiation
RESULT_CANCELED	Payment cancelled or failed (user back, timeout, or app error)

You should always verify payment result with your backend by checking the status of out_trade_no.

What if the FPS app is not installed?

If no compatible FPS payment app is found, startActivityForResult or UIActivityViewController may not launch anything.

✅ Recommendation:

• Always provide a fallback method (e.g., fallback QR code, error message, retry option).

Network or Callback Fails?

If the callback via JS or Universal Link fails:

• Inform the user payment is being verified
• Query the backend again after 3–5 seconds
• Show a loading screen or retry button

---

Demo Downloads

Platform	Flow Type	Demo
Android	Native App-to-App	Download
Android	H5-to-App via WebView	Download
iOS	Native App-to-App (Objective-C)	FPS ObjC Demo
iOS	Native App-to-App (Swift)	FPS Swift Demo
iOS	H5-to-App via JSBridge	JSBridge Demo
